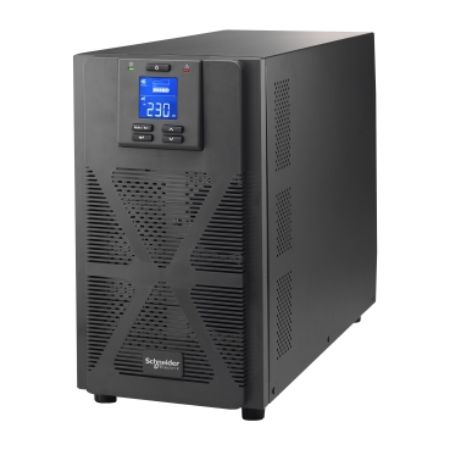

Picture of Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
Picture of Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
Picture of Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
Picture of Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
SKU:

SRVS3KI-AZ

Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD

$1,613.04 INC GST
Available for Shipping : 31-Dec-2025
Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Product Page Link
Product Data Sheet
For small to medium businesses, Schneider Electric offers this single phase Easy UPS designed for essential power protection needs even in the most unstable power conditions. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The SRVS comes with IEC 320 C20 input and 4x Australian outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRVS UPS is compatible with replacement battery cartridge APCRBCV205. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Products specifications

Attribute name Attribute value
Main
Output voltage 240 V, 220 V
Provided equipment user manual, 1 RS-232 configuration cable, 1 USB cable, 1 IEC 60320 C19 to Australian power cable
Rated power in W 2400 W
Main Input Voltage 230 V
Rated power in VA 3000 VA
Product or component type uninterruptible power supply (UPS)
Cable length 4.86 ft
Number of cables 1
Input voltage 240 V, 220 V
Curve proportional loss 0.0341
UPS type double conversion online
Output voltage 230 V
Number of tare power 32 W
Curve load minimum 2 %
Number of battery free slots 0
Curve square loss 0.0319
Curve X-axis title load
Curve X-axis minimum 0 %
Curve Y-axis maximum 100 %
Curve Y-axis units percentage
Output connection type 4 Australian
Liquid value 0
Wave type sine wave
Mounting preference no preference
Battery charger power 118 W rated
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Number of battery filled slots 0
Surge energy rate 600 J
Curve Y-axis minimum 50 %
Battery power in VAH 473 VAh runtime
Curve fixed loss 0.0176
Curve X-axis maximum 100 %
Curve X-axis units percentage
Curve load maximum 100 %
Curve test cond ID Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Battery recharge time 4 h
UPS size WS
Number of power module filled slots 0
Input Connection Type IEC 60320 C20
Redundant No
Battery curve D
Curve Y-axis title efficiency
Show note OP temperature No
Maximum configurable power in VA 3000 VA
Maximum configurable power in W 2400 W
Curve equation efficiency
Number of power module free slots 0
Environmental
Operating altitude 0...3000 m
Acoustic level 50 dBA
Relative humidity 0-95 % non-condensing
Ambient air temperature for storage -20-50 °C
IP degree of protection IP20
Storage altitude 0-15000 m
Ambient air temperature for operation 0-40 °C
Storage Relative Humidity 0-95 % non-condensing
Physical
Depth 42.5 cm
Width 19 cm
Colour black (RAL 7010)
Mounting position vertical
Mounting mode not rack-mountable
Mounting location front
Net weight 26.8 kg
USB compatible No
Height 33.6 cm
Input
Input voltage limits 160...280 V full load, 110...285 V half load
Network frequency 40...70 Hz auto sensing
Output
Efficiency 88 % (full load)
Crest factor 3 : 1
Graph display 1
Bypass type internal bypass (automatic and manual)
Conformance
Standards EN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021
Product certifications CE
Batteries & Runtime
Battery design life 2 year(s)
Battery type lead-acid battery
Battery voltage 72 V
UPS design life 3 year(s)
Battery life 3-5 year(s)
Communications & Management
Control panel multifunction LCD status and control console
Free slots 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 46.5 cm
Package 1 Width 32.5 cm
Package 1 Length 56.5 cm
Package 1 Weight 29 kg

Related products

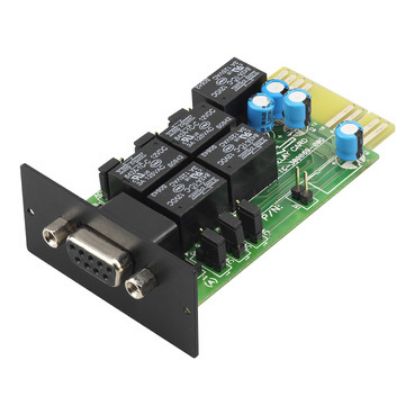

Easy UPS On-Line SRVS Dry Contact Card/Relay I/O Card

VGLS9901I
$122.63 INC GST
View Detail
