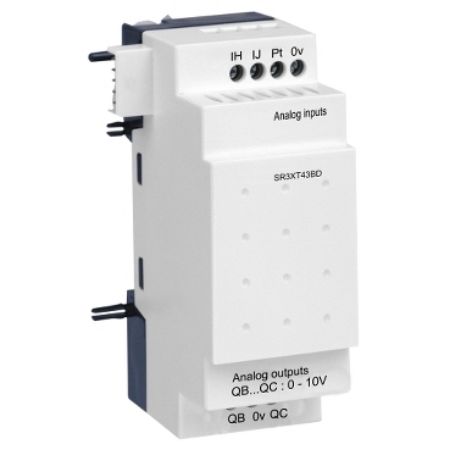

Zelio Logic, 4 Analog I/O Extension, for 24V DC SR

$344.85 INC GST
Available for Shipping : 14-Aug-2025
Zelio Logic, 4 Analog I/O Extension, for 24V DC SR
Be the first to review this product
Manufacturer: Telemecanique
Circularity Profile
User guide
Environmental Disclosure
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The analogue I/O extension module provides 2 input/outputs. It is an extension module with an analogue output range of 0 to 10V and a maximum load current of 10mA for analogue output. It provides 10bit on the input range and 10bit on the output range. The temperature probe is Pt 100, 3-wire conforming to IEC 751. It is furnished with screw terminal for electrical connections. It is an IP20 and IP40 rated product. It weighs 0.11kg. This product meets EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 60068-2-27 Ea standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Product or component type analogue I/O extension module
Complementary
Analogue input resolution 10 bits on the input range
Temperature probe type Pt 100, 3-wire conforming to IEC 751
Tightening torque 0.5 N.m
Short-circuit protection with analogue output
Operating distance 10 m with screened cable for analogue output, 10 m with screened cable for analogue input circuit
Analogue output number 2
Conversion time smart relay cycle time for analogue output, smart relay cycle time for analogue input circuit
Analogue input type common mode
Analogue input range -25...125 °C, 0...20 mA, 0...10 V
Repeat accuracy <= +/- 1 %, input range: 0...20 mA at 25 °C for analogue input circuit, <= +/- 1 %, input range: 0...10 V at 55 °C for analogue output, <= +/- 1 %, input range: 0...10 V at 25 °C for analogue input circuit, < +/- 0.3 °C, input range: - 25...125 °C at 25 °C for analogue input circuit
Maximum permissible voltage 30 V for analogue input circuit
Load type resistive load for analogue output
[Imp] maximum permanent current 30 mA for analogue input circuit
Reverse polarity protection analogue input circuit: with
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid
Analogue input number 2
Analogue output resolution 10 bits on the output range
Net weight 0.11 kg
Analogue output range 0...10 V
Conversion error +/- 1.5 °C, input range: - 25...125 °C (55 °C) for analogue input circuit, +/- 1.5 °C, input range: - 25...125 °C (25 °C) for analogue input circuit, +/- 1 %, input range: 0...20 mA (55 °C) for analogue input circuit, +/- 1 %, input range: 0...20 mA (25 °C) for analogue input circuit, +/- 1 %, input range: 0...10 V (55 °C) for analogue input circuit, +/- 1 %, input range: 0...10 V (25 °C) for analogue input circuit, +/- 1 % of the full scale value, input range: 0...10 V (55 °C) for analogue output, +/- 1 % of the full scale value, input range: 0...10 V (25 °C) for analogue output
Maximum load current 10 mA for analogue output
Input impedance 247 Ohm, input range: 0...20 mA for analogue input circuit, 18 kOhm, input range: 0...10 V for analogue input circuit
LSB value 9.8 mV, 0...10 V for analogue output, 9.8 mV, 0...10 V for analogue input circuit, 20 µA, 0...20 mA for analogue input circuit, 0.15 °C, - 25...125 °C for analogue input circuit
Environment
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to IEC 55022-11 Group 1
Operating altitude 2000 m
Maximum altitude transport 3048 m
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Standards IEC 60068-2-27 Ea, IEC 61000-4-11, IEC 60068-2-6 Fc, IEC 61000-4-2 level 3, IEC 61000-4-6 level 3, IEC 61000-4-4 level 3, IEC 61000-4-3, IEC 61000-4-5, IEC 61000-4-12
Product certifications CSA, C-Tick, UL, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 6.500 cm
Package 1 Length 11.000 cm
Package 1 Weight 105.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.516 kg
