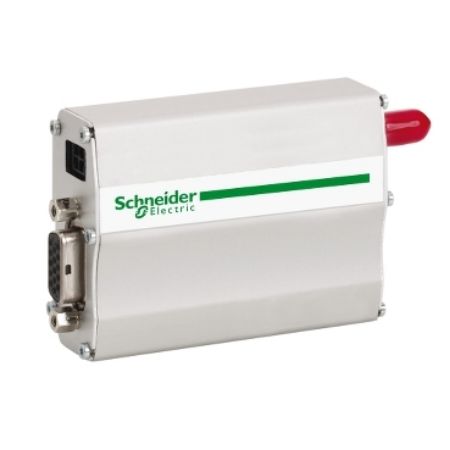

Picture of GSM modem, Modicon M251, Modicon M238, Modicon M241, Modicon M221, 4 band 900/1900 MHz (US) 4 band 900/1800 MHz (E)
SKU:

SR2MOD03

GSM modem, Modicon M251, Modicon M238, Modicon M241, Modicon M221, 4 band 900/1900 MHz (US) 4 band 900/1800 MHz (E)

$1,066.01 INC GST
Availability: Please contact our sales team on 1300 724 622.
GSM modem, Modicon M251, Modicon M238, Modicon M241, Modicon M221, 4 band 900/1900 MHz (US) 4 band 900/1800 MHz (E)
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon M238 range, an offer of compact logic controllers from 18 to 96 I/O. The GSM modem supports 4-band 900/1900MHz for US and 4-band 900/1800MHz for Europe. The supply voltage ranges from 5V to 24V. It weighs 0.335kg. It supports 35mm symmetrical DIN rail and panel mount. The Modicon M238 programmable controllers provide optimised solution to repetitive machines based on high speed counting and simple positioning features for 1 to 4 axis through PTO channels or CANopen. Modicon M238 programmable controllers (PLCs) provide simple and intelligent solutions to meet all your business needs, 20 to 248 I/O 0.3µs per instruction.

Products specifications

Attribute name Attribute value
Main
Product or component type GSM modem
Accessory / separate part category communication accessory
Type of modem 4-band 900/1800 MHz (Europe), 4-band 900/1900 MHz (US)
Range of product Modicon M221, Modicon M241, Modicon M238, Modicon M251
Complementary
Mounting support panel, 35 mm symmetrical DIN rail
Supply voltage limits 5-24 V
Net weight 0.335 kg
Provided equipment 1 power cable 1.5 m, 1 4-band GSM antenna with cable 2.5 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 7.4 cm
Package 1 Length 14.5 cm
Package 1 Weight 322.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.977 kg
