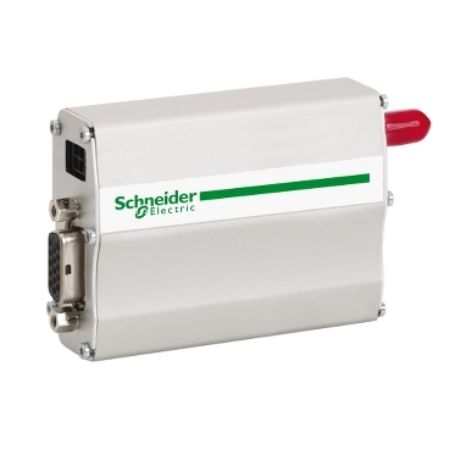

Picture of Zelio Logic, GSM modem interface, for communication interface SR2COM01
SKU:

SR2MOD02

Zelio Logic, GSM modem interface, for communication interface SR2COM01

$1,164.02 INC GST
Available for Shipping : 16-Nov-2025
Zelio Logic, GSM modem interface, for communication interface SR2COM01
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
User guide
Catalog
Product Page Link
Product Data Sheet
This Zelio Logic SR2 modem interface brings GSM connectivity to your Zelio Logic relay. It provides wireless communications available directly through GSM network, a simple SIM card is enough to get.

Products specifications

Attribute name Attribute value
Main
Data backed up flash memory
Product or component type GSM modem
Type of modem type quad band 900/1800 MHz, 850/1900 MHz
Range of product Zelio Logic
Complementary
Associated fuse rating 2.5 A
Insulation by the cable SR2 CBL07, connector type: Com-M specific to Zelio, 1780 V optocoupler, connector type: Com-Z specific to Zelio
Number of messages 28
Kit composition 2 lugs for plate mounting, 1 antenna with cable, 1 supply cable, fixing on DIN rail (assembled with the GSM modem), GSM modem
Electrical connection supply cable, 1 cable Com-Z Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1), 1 cable, 1 antenna with cable, 1 cable Com-M Com-M specific to Zelio RS232 serial, specific Zelio communication protocol for link with the modem, AT commands
Tightening torque 0.5 N.m
Maximum supply current 2100 mA at 5.5 V, 87 A at 24 V, 165 mA at 12 V
Power dissipation in W 2.1 W
Supply voltage limits 5.5-32 V
[Us] rated supply voltage 12...24 V DC
Function available update firmware monitoring, transfer program, send alarm to e-mail address, send alarm/receive instruction
Connections - terminals screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid, screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Electrical data recording date and time, discrete and digital value, telephone/e-mail
Net weight 0.335 kg
Cable length 2.5 m antenna with cable, 1.5 m supply cable
Environment
Operating altitude 2000 m
Maximum altitude transport 3048 m
Relative humidity 0-95 % without condensation, during storage, 0-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to EN/IEC 61131-2
IP degree of protection IP31 conforming to IEC 60529
Environmental characteristic EMC directive conforming to ETSI EN 301 489-1, R and TTE directive conforming to ETSI EN 301 511, R and TTE directive conforming to ETSI EN 301 489-7, R and TTE directive conforming to ETSI EN 301419-1, low voltage directive conforming to EN/IEC 60950-1
Electromagnetic compatibility conducted and radiated emissions class B group 1 conforming to EN 55022-11
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-2, -20-55 °C conforming to IEC 60068-2-1
Standards EN/IEC 60068-2-32, EN/IEC 60068-2-6 Fc
Product certifications C-Tick, FCC part 15 standard, IC, CSA, GOST, PTCRB, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 7.5 cm
Package 1 Length 14.7 cm
Package 1 Weight 318.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.895 kg
