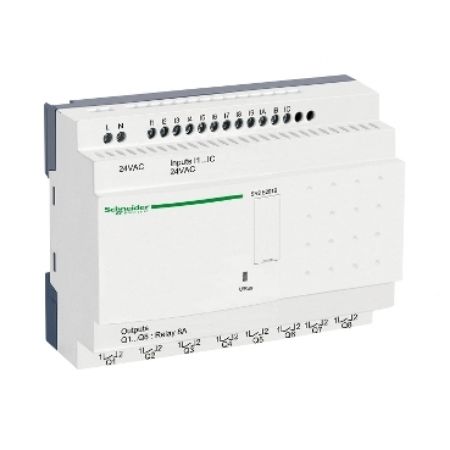

Picture of Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display
Picture of Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display
Picture of Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display
Picture of Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display
Picture of Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display
SKU:

SR2E201B

Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display

$588.66 INC GST
Available for Shipping : 14-Aug-2025
Product Selector
Zelio Logic, Compact smart relay, 20 I/O, 24 V AC, clock, no display
Be the first to review this product
Manufacturer: Telemecanique
User guide
Circularity Profile
Instruction sheet
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 20 I/Os, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines. It is a module with rated supply voltage of 24V AC and cycle time of 6ms to 90ms. It offers 12 discrete inputs with voltage of 24V AC and 4 relay outputs with voltage range from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.35kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Product or component type compact smart relay
Complementary
Supply frequency 50/60 Hz
Discrete input number 12
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Protection type against inversion of terminals (control instructions not executed)
Isolation voltage 1780 V
Tightening torque 0.5 N.m
Supply voltage limits 20.4-28.8 V
Current state 0 guaranteed <= 0.5 mA (discrete input)
Electrical durability DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Voltage state 0 guaranteed <= 5 V for discrete input
Local display without
Clock with
Backup time 10 years at 25 °C
Discrete input voltage 24 V AC
Output thermal current 8 A for all 8 outputs for relay output
Discrete input frequency 57...63 Hz, 47...53 Hz
Contacts type and composition NO for relay output
[Us] rated supply voltage 24 V AC
Checks program memory on each power up
Cycle time 6-90 ms
Switching capacity in mA >= 10 mA at 12 V (relay output)
Maximum supply current 233 mA (without extension)
Mechanical durability 10000000 cycles for relay output
Overvoltage category III conforming to IEC 60664-1
Voltage state 1 guaranteed >= 14 V for discrete input
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Analogue input number 0
Output voltage limits 24...250 V AC, 5...30 V DC (relay output)
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Net weight 0.35 kg
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed >= 2 mA (discrete input)
Discrete input current 4.4 mA
Power consumption in VA 6 VA without extension
Clock drift 6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number or control scheme lines 0-500 with FBD programming, 0-240 with ladder programming
Number of outputs 8 relay
Input impedance 4.6 kOhm for discrete input
Environment
Relative humidity 95-95 % without condensation or dripping water
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to EN 55022-11 group 1
Operating altitude 2000 m
Maximum altitude transport 3048 m
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks 10 ms repeated 20 times
Standards IEC 60068-2-6 Fc, IEC 61000-4-4 level 3, IEC 61000-4-2 level 3, IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-3, IEC 61000-4-6 level 3, IEC 61000-4-11, IEC 61000-4-12
Product certifications GOST, GL, C-Tick, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.800 cm
Package 1 Width 10.000 cm
Package 1 Length 13.500 cm
Package 1 Weight 330.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.066 kg
