SR2E121BD

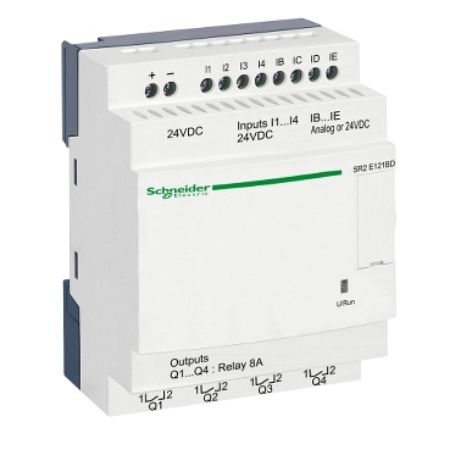

Zelio Logic, Compact smart relay, 12 I/O, 24 V DC, clock, no display

$430.76 INC GST

Qty:

Available for Shipping : 14-Aug-2025

Product Selector

Zelio Logic, Compact smart relay, 12 I/O, 24 V DC, clock, no display

Be the first to review this product

Manufacturer: Telemecanique

User guide

Circularity Profile

Instruction sheet

Declaration of conformity

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes without display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 4 relay outputs and 8 discrete inputs and 8 discrete inputs. It is a smart relay with a rated supply voltage of 24V DC, a maximum supply current of 100mA (without extension) and a power dissipation of 3W without extension. It is an IP20 and IP40 rated product. It weighs 0.22kg. This product meets EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-5 and EN/IEC 60068-2-27 Ea standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Products specifications

Attribute name	Attribute value
Main
Range of product	Zelio Logic
Product or component type	compact smart relay
Complementary
Discrete input number	8 conforming to IEC 61131-2 Type 1
Counting frequency	1 kHz for discrete input
Operating rate in Hz	10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Analogue input resolution	8 bits
Temperature probe type	Pt 500, KTY81 210/220/221/222/250, NTC 1000k at 25 °C, NTC 10k at 25 °C
Tightening torque	0.5 N.m
Operating distance	10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
Supply voltage limits	19.2-30 V
Current state 0 guaranteed	<= 0.75 mA (I1...IA and IH...IR discrete input circuit), <= 0.5 mA (IB...IG used as discrete input circuit)
Input compatibility	3-wire proximity sensors PNP for discrete input
Electrical durability	DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Conversion time	smart relay cycle time for analogue input circuit
Voltage state 0 guaranteed	<= 5 V for IB...IG used as discrete input circuit, <= 5 V for I1...IA and IH...IR discrete input circuit
Local display	without
Power dissipation in W	3 W without extension
Clock	with
Analogue input type	common mode
Backup time	10 years at 25 °C
Discrete input voltage	24 V DC
Output thermal current	8 A for all 4 outputs for relay output
Analogue input range	0...10 V, 0...24 V
Discrete input type	resistive
Contacts type and composition	NO for relay output
[Us] rated supply voltage	24 V DC
Checks	program memory on each power up
Repeat accuracy	+/- 2 % at 55 °C for analogue input circuit
Maximum permissible voltage	30 V for analogue input circuit
Reverse polarity protection	with
Cycle time	6-90 ms
Switching capacity in mA	>= 10 mA at 12 V (relay output)
Maximum supply current	100 mA (without extension)
Mechanical durability	10000000 cycles for relay output
Overvoltage category	III conforming to IEC 60664-1
Voltage state 1 guaranteed	>= 15 V for IB...IG used as discrete input circuit, >= 15 V for I1...IA and IH...IR discrete input circuit
Connections - terminals	screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Analogue input number	4
Output voltage limits	5...30 V DC (relay output), 24...250 V AC (relay output)
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Net weight	0.22 kg
Response time	5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output
Current state 1 guaranteed	>= 2.2 mA (I1...IA and IH...IR discrete input circuit), >= 1.2 mA (IB...IG used as discrete input circuit)
Discrete input current	4 mA
Clock drift	6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number or control scheme lines	0-500 with FBD programming, 0-240 with ladder programming
LSB value	39 mV for analogue input circuit
Conversion error	+/- 6.2 % at 55 °C for analogue input circuit, +/- 5 % at 25 °C for analogue input circuit
Number of outputs	4 relay
Input impedance	7.4 kOhm for I1...IA and IH...IR discrete input circuit, 12 kOhm for IB...IG used as discrete input circuit, 12 kOhm for IB...IG used as analogue input circuit
Environment
Relative humidity	95-95 % without condensation or dripping water
Ambient air temperature for storage	-40-70 °C
Pollution degree	2 conforming to IEC 61131-2
IP degree of protection	IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation	-20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted	class B conforming to EN 55022-11 group 1
Operating altitude	2000 m
Maximum altitude transport	3048 m
Environmental characteristic	low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks	1 ms
Standards	IEC 60068-2-27 Ea, IEC 61000-4-5, IEC 61000-4-4 level 3, IEC 60068-2-6 Fc, IEC 61000-4-2 level 3, IEC 61000-4-6 level 3, IEC 61000-4-3, IEC 61000-4-12, IEC 61000-4-11
Product certifications	C-Tick, GOST, UL, CSA, GL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	6.800 cm
Package 1 Width	9.000 cm
Package 1 Length	10.000 cm
Package 1 Weight	206.000 g
Unit Type of Package 2	2
Number of Units in Package 2	30
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	6.778 kg
