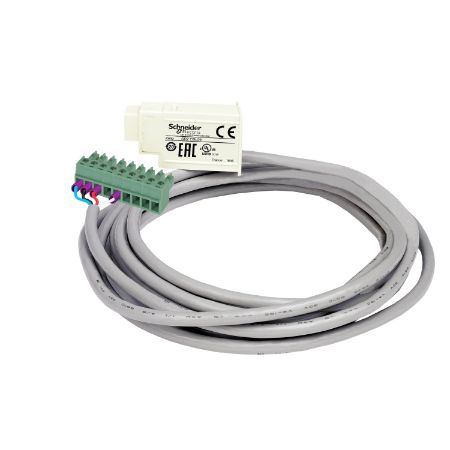

Picture of connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay
SKU:

SR2CBL09

connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay

$196.26 INC GST
Available for Shipping : 12-Aug-2025
connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Environmental Disclosure
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This connecting cable enables to link Magelis small panel to Zelio Logic smart relay. The length of this cable is 2.5m. This connecting cable is equipped with 3-pin connector and 9-pin terminal block. It offers RS232 physical interface. It is suitable for use with Vijeo Designer software and to link Magelis small panel to smart relay. This product is compatible with Zelio Logic compact and modular smart relay HMISTO501. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination for smart relay
Accessory / separate part type connecting cable
Product specific application to link Magelis small panel to smart relay, to be used with Vijeo Designer software
Accessory / separate part category connection accessories
Range of product Zelio Logic
Complementary
Product compatibility HMISTO705, HMISTO501, Zelio Logic compact and modular smart relay
Physical interface RS232
Connector type 9-pin terminal block, 3-pin for a programming terminal
Cable length 2.5 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 14.000 cm
Package 1 Length 15.000 cm
Package 1 Weight 72.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.466 kg
