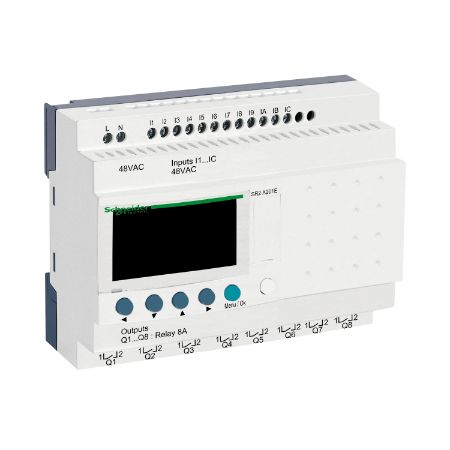

Picture of Zelio Logic, Compact smart relay, 20 I/O, 48 V AC, no clock, display
SKU:

SR2A201E

Zelio Logic, Compact smart relay, 20 I/O, 48 V AC, no clock, display

$607.42 INC GST
Available for Shipping : 14-Aug-2025
Product Selector
Zelio Logic, Compact smart relay, 20 I/O, 48 V AC, no clock, display
Be the first to review this product
Manufacturer: Telemecanique
User guide
Circularity Profile
Environmental Disclosure
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 48V alternating current. It has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Product or component type compact smart relay
Complementary
Supply frequency 50/60 Hz
Discrete input number 12
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Isolation voltage 1780 V
Supply voltage limits 40.8-52.8 V
Current state 0 guaranteed <= 0.4 mA
Electrical durability DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Voltage state 0 guaranteed <= 17 V
Local display with
Clock without
Discrete input voltage 48 V AC
Output thermal current 8 A for all 8 outputs
Discrete input frequency 47...53 Hz, 57...63 Hz
Contacts type and composition NO
[Us] rated supply voltage 48 V AC
Switching capacity in mA >= 10 mA at 12 V
Maximum supply current 110 mA (without extension)
Voltage state 1 guaranteed >= 20 V
Analogue input number 0
Output voltage limits 5...30 V DC, 24...250 V AC
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Net weight 0.38 kg
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 48 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed >= 0.5 mA
Discrete input current 1.2 mA
Power consumption in VA 5.7 VA without extension
Number or control scheme lines 0-240 with ladder programming
Number of outputs 8 relay
Input impedance 24 kOhm
Environment
Immunity to microbreaks 10 ms repeated 20 times
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 10.0 cm
Package 1 Length 13.3 cm
Package 1 Weight 365.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.013 kg
