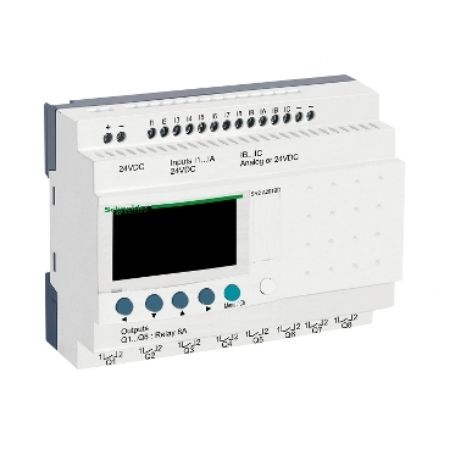

Picture of compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
Picture of compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
Picture of compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
Picture of compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
Picture of compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
Picture of compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
SKU:

SR2A201BD

compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display

$615.89 INC GST
Available for Shipping : 28-Jul-2025
Product Selector
compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
Be the first to review this product
Manufacturer: Telemecanique
Circularity Profile
Environmental Disclosure
User guide
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and without clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 8 relay outputs with normally opened contact and 12 discrete inputs. It has a rated supply voltage of 24V DC, a maximum supply current of 100mA (without extension) and a power consumption of 6W without extension. It is an IP20 and IP40 rated product. It weighs 0.38kg. This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-12, EN/IEC 61000-4-11, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-4 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Products specifications

Attribute name Attribute value
Main
Range of product Zelio Logic
Product or component type compact smart relay
Complementary
Discrete input number 12 conforming to IEC 61131-2 Type 1
Counting frequency 1 kHz for discrete input
Operating rate in Hz 10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
Tightening torque 0.5 N.m
Operating distance 10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
Supply voltage limits 19.2-30 V
Electrical durability DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Local display with
Power dissipation in W 6 W without extension
[Us] rated supply voltage 24 V DC
Checks program memory on each power up
Repeat accuracy +/- 2 % at 55 °C for analogue input circuit
Maximum permissible voltage 30 V for analogue input circuit
Switching capacity in mA >= 10 mA at 12 V (relay output)
Mechanical durability 10000000 cycles for relay output
Voltage state 1 guaranteed >= 15 V for IB...IG used as discrete input circuit, >= 15 V for I1...IA and IH...IR discrete input circuit
Connections - terminals screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Analogue input number 2
Net weight 0.38 kg
Current state 1 guaranteed >= 2.2 mA (I1...IA and IH...IR discrete input circuit), >= 1.2 mA (IB...IG used as discrete input circuit)
Discrete input current 4 mA
Number or control scheme lines 0-240 with ladder programming
LSB value 39 mV for analogue input circuit
Conversion error +/- 6.2 % at 55 °C for analogue input circuit, +/- 5 % at 25 °C for analogue input circuit
Analogue input resolution 8 bits
Current state 0 guaranteed <= 0.5 mA (IB...IG used as discrete input circuit)
Input compatibility 3-wire proximity sensors PNP for discrete input
Conversion time smart relay cycle time for analogue input circuit
Voltage state 0 guaranteed <= 5 V for IB...IG used as discrete input circuit, <= 5 V for I1...IA and IH...IR discrete input circuit
Clock without
Analogue input type common mode
Backup time 10 years at 25 °C
Discrete input voltage 24 V DC
Output thermal current 8 A for all 8 outputs for relay output
Analogue input range 0...10 V, 0...24 V
Discrete input type resistive
Contacts type and composition NO for relay output
Reverse polarity protection with
Cycle time 6-90 ms
Maximum supply current 100 mA (without extension)
Overvoltage category III conforming to IEC 60664-1
Output voltage limits 5...30 V DC (relay output), 24...250 V AC (relay output)
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Response time 5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output
Clock drift 6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number of outputs 8 relay
Input impedance 7.4 kOhm for I1...IA and IH...IR discrete input circuit, 12 kOhm for IB...IG used as discrete input circuit, 12 kOhm for IB...IG used as analogue input circuit
Environment
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted class B conforming to EN 55022-11 group 1
Operating altitude 2000 m
Maximum altitude transport 3048 m
Immunity to microbreaks 1 ms
Product certifications C-Tick, UL, GL, CSA, GOST
Relative humidity 95-95 % without condensation or dripping water
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Environmental characteristic low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Standards IEC 61000-4-4 level 3, IEC 60068-2-27 Ea, IEC 61000-4-2 level 3, IEC 61000-4-3, IEC 61000-4-11, IEC 61000-4-12, IEC 60068-2-6 Fc, IEC 61000-4-6 level 3, IEC 61000-4-5
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 10.000 cm
Package 1 Length 13.300 cm
Package 1 Weight 360.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.620 kg
