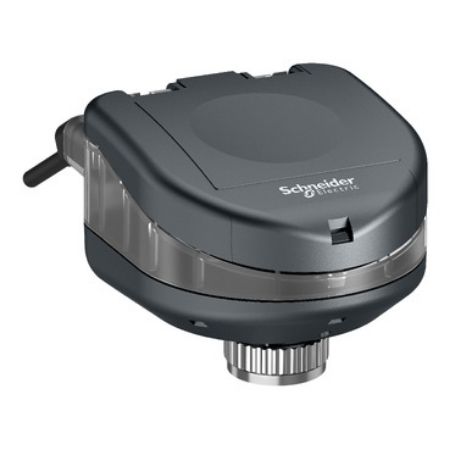

Picture of SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).
Picture of SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).
Picture of SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).
SKU:

SP90-24BMM

SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).

$901.94 INC GST
Available for Shipping : 03-Sep-2025
SpaceLogic PIBCV Fieldbus Actuator for advanced hydronic control (Modbus/BACnet MS-TP).
  • Remotely adjust the flow balancing without a mechanical valve adjustment
  • Connect flow and return temperature sensors for advanced analytical monitoring
  • Obtain flow and energy information
  • Advanced control of the flow and energy use for hyper energy efficiency
  • Change of Value Alarms communicated on operational and life time issues
  • True Smart Building Enabler
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
The SP9 PIBCV Actuators is high accuracy multi-function field bus actuator, designed for use in combination with SmartX PIBCV in sizes from DN 1…32. The SmartX SP9 Actuator will control hot or chilled water for numerous HVAC equipment. The high positional accuracy of the actuator, together with the accurate linear flow characteristic of the PIBCV, allow the SP9 to be used as a flow indicator. Remote commissioning/Pre-set/Flush features, Flow indication, LED status, Auto Mac addressing for and intrinsic alarm reporting for BACnet. Power Supply range: 24 Vac/dc, +/- 25%. Force: 9 N Protection class III safety extra-low voltage, IP54 (IP4 upside-down). Max. Stroke 7 mm. EMC 24/18/EC.

Products specifications

Attribute name Attribute value
Main
Hold-in power consumption in VA 1.8-1.8 VA AC
Hold-in power consumption in W 0.7-0.7 W
Motor type brushless DC motor
Product destination pressure independent control valves
Product or component type actuator
Power consumption in VA 2.7 VA AC
Targeted region North America., Australia., Asia Pacific., Europe
Complementary
Force N 90 N
Material polycarbonate: housing
Stroke running time 24 s
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class III
Control type manual override
Force lbf 21 lbf
Actuator linear
Environment
IP degree of protection IP54
Relative humidity 0-90 % RH, non-condensing
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -10-50 °C
Power loss return non-spring return
Control signal Modbus, BACnet, proportional/modulating
Stroke auto calibration True
Actuator type electric
Actuator product range SpaceLogic
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.8 cm
Package 1 Width 10 cm
Package 1 Length 7.8 cm
Package 1 Weight 380 g

Related products

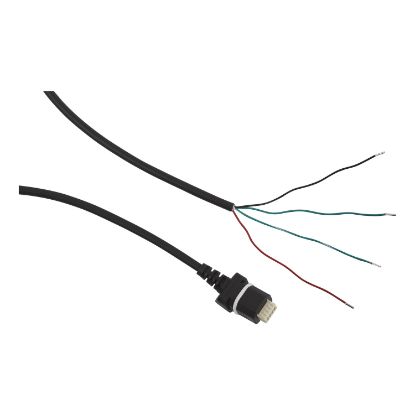

Picture of 10m digital cable for the SpaceLogic SP90 PIBCV actuator

10m digital cable for the SpaceLogic SP90 PIBCV actuator

9114410000
$171.28 INC GST
View Detail

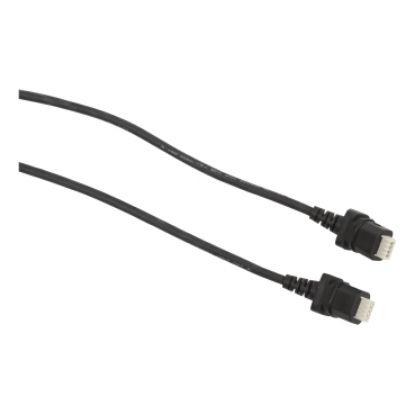

1.5m digital daisy chain cable for the SpaceLogic SP90 PIBCV actuator
