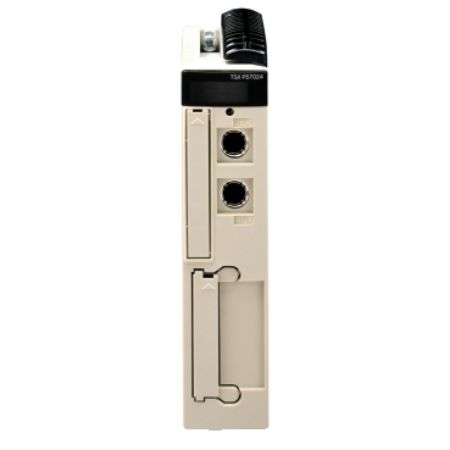

Picture of Single format PL7 processor, Modicon Premium, Internal RAM 32Kwords data, PL7 Junior/Pro
SKU:

TSXP57103M

Single format PL7 processor, Modicon Premium, Internal RAM 32Kwords data, PL7 Junior/Pro

$2,927.45 INC GST
Availability: Please contact our sales team on 1300 724 622.
Single format PL7 processor, Modicon Premium, Internal RAM 32Kwords data, PL7 Junior/Pro
  • Standard premium processor with integrated EtherNet & Fipio
  • The processors manage the enitre PLC station
  • Comprise of 8 in-rack application specific channels
  • PCMCIA memory extension cards are used to extend the internal RAM capacity of Premium processors.
  • SRAM memory card used in the application program design and debugging phases
  • Communication protocols supported by Modbus and Uni-Telway.
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Modicon Premium Automation platform
Software designation PL7 Junior/Pro
Product or component type single-format PL7 processor
Complementary
Number of application specific channel 8
Memory description PCMCIA card 64 Kwords program, PCMCIA card 128 Kwords additional data storage, internal RAM (without PCMCIA card) 32 Kwords program and data, internal RAM (with PCMCIA card) 32 Kwords data
Analogue I/O processor capacity 24 I/O
Module format standard
Number of instructions per ms 1.52 Kinst/ms 100 % Boolean without PCMCIA card, 1.18 Kinst/ms 100 % Boolean with PCMCIA card, 1.05 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card, 0.85 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card
Number of slots 24, 32, 16
Application structure 32 event tasks, 1 fast task, 1 master task
Marking CE
Discrete I/O processor capacity 512 I/O
Local signalling 1 LED (yellow) for activity on the terminal port (TER), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module or configuration fault (I/O), 1 LED (green) for processor running (RUN)
Execution time per instruction 44 µs floating points without PCMCIA card, 44 µs floating points with PCMCIA card, 0.87 µs word or fixed-point arithmetic with PCMCIA card, 0.62 µs word or fixed-point arithmetic without PCMCIA card, 0.6 µs Boolean with PCMCIA card, 0.5 µs Boolean without PCMCIA card
Maximum size of object areas 4096 %Mi located internal bits, 32 %KWi constant words located internal data, 30.5 %MWi internal words located internal data
Integrated connection type non isolated serial link 2 female mini DIN connector (19.2 kbit/s)
System overhead 1.5 ms for master task, 0.8 ms for fast task
Net weight 0.38 kg
Current consumption 440 mA at 5 V DC
Communication module processor capacity 1 CANopen, 2 AS-Interface bus modules, 1 network module
Number of racks 4 4/6/8 slots, 2 12 slots
Environment
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Ambient air temperature for operation 0-60 °C
Operating altitude 0...2000 m
Standards CSA C22.2 No 213 Class I Division 2 Group D, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group B, 93/68/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group C, 73/23/EEC, UL 508, 89/336/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A
Product certifications RINA, LR, ABS, BV, RMRS, GL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 508.0 g
