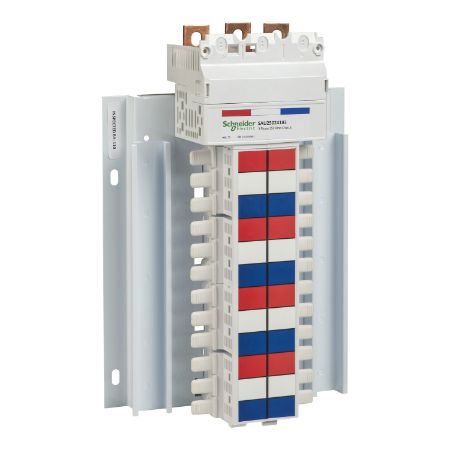

Picture of Acti9, SAU Chassis, Acti9, 250A, 3Ph, 24 poles, 18mm for iC60 MCB and RCBO, top or bottom
SKU:

SAU25024183

Acti9, SAU Chassis, Acti9, 250A, 3Ph, 24 poles, 18mm for iC60 MCB and RCBO, top or bottom

Old price: $386.10 INC GST
$254.83 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Acti9 SAU Chassis (SAU2502418)
  • 250A, 3-phase, 24-pole chassis designed for 18mm iC60 MCB and RCBO devices
  • Compliant with AS/NZS 61439 standards and local wiring regulations
  • Fully compatible with Acti9 circuit protection devices, including MCBs and RCBOs
  • Type-tested system ensuring superior quality and performance
  • Encapsulation design provides excellent protection and compatibility with NSX MCCBs
  • Easily adaptable for panel builder distribution boards with top or bottom feed options
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet

The Acti9 SAU Chassis is designed for mounting on distribution boards. It has a rated operational current (Ie) of 250A and a rated operational voltage (Ue) of 415V at 50 Hz. The chassis supports both top and bottom feeding, offering flexibility in installation.

It is compatible with incomer 3-phase devices and outgoing 1-phase or 3-phase devices. With 24 outgoing ways and an 18mm pitch, it’s built for versatile setups. When used with the appropriate accessories, it provides IP2X protection.

This chassis is suitable for standard, commercial, and industrial applications. It features a rated insulation voltage (Ui) of 500VAC and a rated impulse voltage (Uimp) of 6kV. Complying with the AS/NZS 61439-2 standard, it has compact dimensions of 218mm (L) x 215mm (W).

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range Acti9
Product or component type chassis
Complementary
Number of poles 24, 24 x 18 mm
Width 215 mm
Location of connection top or bottom
[In] rated current 250 A
Short-circuit withstand 25 kA 0.1 s
Rated voltage 415 V 50 Hz
Length 218 mm
[Ui] rated insulation voltage 500 V
Range compatibility Acti 9 distribution board
Number of ways 1 way (incomer) - 3P
Network type AC
[Uimp] rated impulse withstand voltage 6 kV
Busbar pitch 18 mm
Environment
Standards AS/NZS 61439
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.2 cm
Package 1 Width 24.3 cm
Package 1 Length 41.0 cm
Package 1 Weight 2091.4 g
