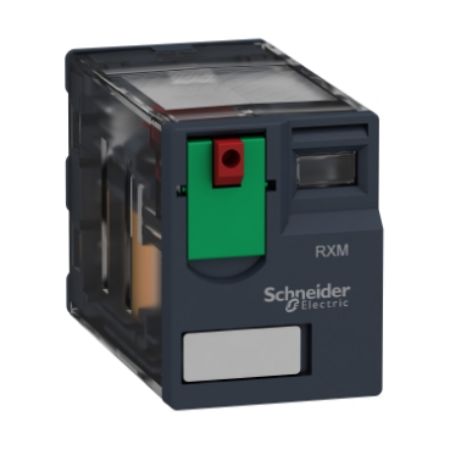

Picture of Miniature plug in relay, Harmony, 3A, 4CO, lockable test button, 230V AC
Picture of Miniature plug in relay, Harmony, 3A, 4CO, lockable test button, 230V AC
Picture of Miniature plug in relay, Harmony, 3A, 4CO, lockable test button, 230V AC
SKU:

RXM4GB1P7

Miniature plug in relay, Harmony, 3A, 4CO, lockable test button, 230V AC

Old price: $33.77 INC GST
$32.08 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
Miniature plug in relay, Harmony, 3A, 4CO, lockable test button, 230V AC
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Declaration of conformity
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor control, PLC Interfaces, power supplies, building equipment, especially those requiring low level contacts. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Products specifications

Attribute name Attribute value
Main
Device short name RXM
[Uc] control circuit voltage 230 V, 230 V AC 50/60 Hz
Control type lockable test button
Range of product Harmony Electromechanical Relays
Utilisation coefficient 20 %
[Ithe] conventional enclosed thermal current 3 A at -40-55 °C
[In] rated current 3 A
Contacts type and composition 4 C/O
Series name Miniature
Status LED without
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.15 Uc
[Uimp] rated impulse withstand voltage 2.5 kV during 1.2/50 µs
Load current 3 A at 28 V DC, 3 A at 250 V AC
Operating position any position
Compatibility code RXM
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles for resistive load depending on mounting position and working environment
Device presentation complete product
Average resistance 15000 Ohm at 20 °C +/- 15 %
Shape of pin flat
Contacts material gold plated bifurcated silver
Maximum switching capacity 750 VA/84 W
Average coil consumption in VA 1.2-1.2 at 60 Hz
Minimum switching capacity 15 mW at 3 mA, 5 V
Operating time 20 ms
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current 3 A at 277 V (AC) conforming to UL, 3 A at 28 V (DC) conforming to UL, 1 A at 250 V (AC) NC conforming to IEC, 1 A at 28 V (DC) NC conforming to IEC, 2 A at 250 V (AC) NO conforming to IEC, 2 A at 28 V (DC) NO conforming to IEC
Rated operational voltage limits 184...253 V AC
Maximum switching voltage 250 V conforming to IEC
Net weight 0.037 kg
Reset time 20 ms
Test levels level A group mounting
Protection category RT I
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Average consumption 1.2 VA at 60 Hz
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Pollution degree 2
Shock resistance 30 gn for not operating, 10 gn for in operation
Vibration resistance 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 2000 V AC between poles, 2000 V AC between coil and contact, 1300 V AC between contacts with micro disconnection
Standards UL 508, IEC 61810-1, CSA C22.2 No 14
Product certifications IECEE CB Scheme, GOST, CSA, CE, Lloyd's, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 2.800 cm
Package 1 Length 4.800 cm
Package 1 Weight 35.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.300 cm
Package 2 Width 10.300 cm
Package 2 Length 12.800 cm
Package 2 Weight 378.000 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.541 kg
