RXG25P7

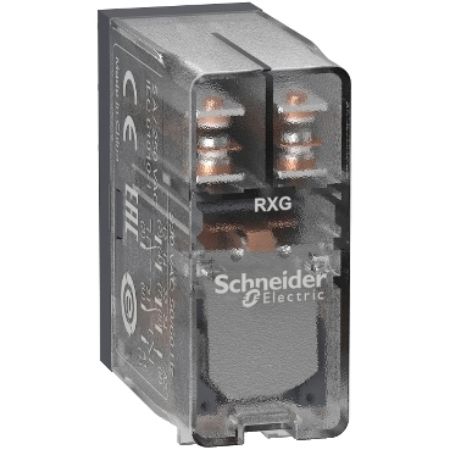

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, clear cover, 230V AC

Old price: $25.19 INC GST
$23.93 INC GST
Available for Shipping : 12-Nov-2025
interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, clear cover, 230V AC
Manufacturer: Schneider Electric
"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RXG
[Uc] control circuit voltage 230 V
Range of product Harmony Electromechanical Relays
[Ithe] conventional enclosed thermal current 5 A at -40-55 °C
[In] rated current 5 A
Contacts type and composition 2 C/O
Series name interface relay
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.3 Uc AC
Load current 5 A at 250 V AC
Control circuit voltage limits 0.8...1.1 Uc AC
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles for NC resistive load at 55 °C, 100000 cycles for NO resistive load at 55 °C
Device presentation complete product
Colour of cover transparent
Shock resistance 100 gn not in operation, 20 gn in operation
Pollution degree 2
Contacts material silver alloy (AgSnO2In2O3)
Torque value 0.8 N.m
Insulation resistance 1000 MOhm at 500 V DC
Safety reliability data B10d = 100000
Maximum switching capacity 1250 VA
Utilisation coefficient 20 %
Minimum switching capacity 50 mW at 10 mA, 5 V DC
Overvoltage category III
Mounting position any position
Resistance 23500 Ohm +/- 15 %
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current 5 A at 250 V (AC) conforming to UL, 5 A at 250 V (AC) conforming to IEC, 5 A at 30 V (DC) conforming to IEC, 5 A at 30 V (DC) conforming to UL
Maximum switching voltage 30 V DC, 250 V AC
Net weight 0.019 kg
Dielectric strength 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation, 1000 V AC between contacts with micro disconnection
Test levels level A group mounting
Protection category RT I
Operating rate <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load
Average consumption 0.82 VA 60 Hz
[Uc] control circuit voltage 230 V AC 50/60 Hz
Environment
IP degree of protection IP40
Ambient air temperature for storage -40-85 °C
Relative humidity 10-85 %
Ambient air temperature for operation -40-70 °C
Vibration resistance 5 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)not in operation, 3 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)in operation
Standards CSA C22.2 No 14, IEC 61810-1, UL 508
Product certifications DNV-GL, UL, EAC, CSA, CE
Contact resistance 100 mOhm
Operating time 20 ms
Electrical insulation class class F
Reset time 20 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.400 cm
Package 1 Width 3.200 cm
Package 1 Length 3.400 cm
Package 1 Weight 18.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.500 cm
Package 2 Width 7.500 cm
Package 2 Length 8.200 cm
Package 2 Weight 200.000 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.157 kg
