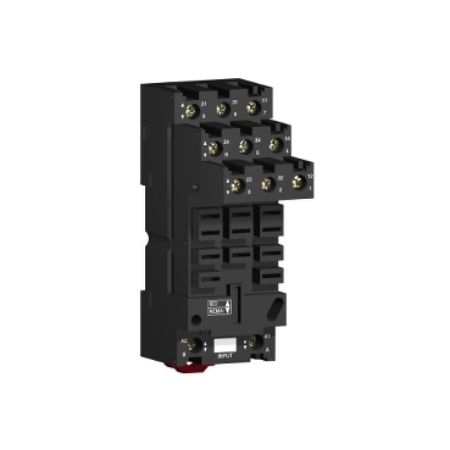

Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Picture of socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
SKU:

RUZSF3M

socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact

Old price: $19.69 INC GST
$18.71 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
socket, Harmony Electromechanical Relays, for RUMF2 RUMF3 relays, 12A, screw connec to rs, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Image of product in real life situation
Catalog
Product Page Link
Product Data Sheet
"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage < 250 V
Device short name RUZ
[In] rated current 12 A
Product compatibility plug-in relay RUM with 3 C/O contact, plug-in relay RUM with 2 C/O contact
Contacts type and composition 3 C/O
Product or component type socket
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 16 A
Complementary
Group of product RUM_2-3_C/O_CON_SEP_FLAT
Overvoltage category III
Width 36 mm
Compatibility code RUZ
Sale per indivisible quantity 10
Connections - terminals connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Net weight 0.095 kg
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Tightening torque < 1 N.m for M3.5 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-55 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.300 cm
Package 1 Width 3.500 cm
Package 1 Length 9.200 cm
Package 1 Weight 92.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 10.100 cm
Package 2 Width 11.000 cm
Package 2 Length 18.500 cm
Package 2 Weight 983.000 g
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.466 kg
