SKU:

RUZC2M

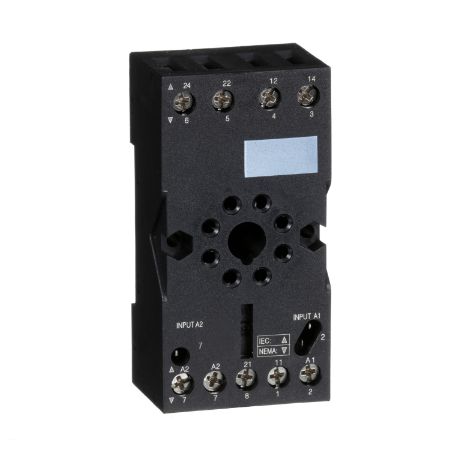

Harmony Timer Relays, Socket for RUMC2 relays, 10A, screw connectors, mixed contact

Old price: $14.19 INC GST
$13.48 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Harmony Timer Relays, Socket for RUMC2 relays, 10A, screw connectors, mixed contact
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage < 250 V
Device short name RUZ
Output type relay
[In] rated current 10 A
Product compatibility plug-in relay RE48 with 1 C/O + 1 C/O contact, plug-in relay RE48 with 2 C/O contact, plug-in relay RUM with 2 C/O contact
Contacts type and composition 2 C/O
Product or component type socket
Range of product Harmony Timer Relays, Harmony Electromechanical Relays
[Ith] conventional free air thermal current 10 A
Complementary
Group of product RUM_2_C/O_CON_MIX_CYL
Overvoltage category III
Width 38 mm
Compatibility code RUZ
Sale per indivisible quantity 10
Connections - terminals connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, screw connectors
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Net weight 0.054 kg
Contact terminal arrangement mixed
Shape of pin cylindrical
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Tightening torque < 1 N.m for M3.5 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 3.800 cm
Package 1 Length 8.000 cm
Package 1 Weight 50.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 8.500 cm
Package 2 Width 8.500 cm
Package 2 Length 14.500 cm
Package 2 Weight 543.000 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.420 kg
Unit Type of Package 4 4
Number of Units in Package 4 1600
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 101.360 kg
