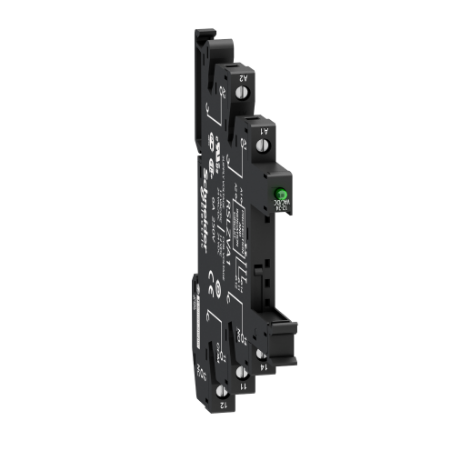

Picture of Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, srew connector, 48…60V AC DC
SKU:

RSLZVA2

Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, srew connector, 48…60V AC DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Harmony Electromechanical Relays, Socket equipped with LED and protection circuit, for RSL1 relays, srew connector, 48…60V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Declaration of conformity
Technical illustration
Product Page Link
Product Data Sheet
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V ac/dc." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RSLZ
[Uc] control circuit voltage 60 V, 48 V
Product compatibility plug-in relay RSL with 1 C/O contact at 60 V DC, plug-in relay RSL with 1 C/O contact at 48 V DC
Device presentation basic element
Rated operational voltage limits 54...72 V, 43.2...57.6 V
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 6 A
[Ue] rated operational voltage < 300 V AC
Switching voltage 60 V AC/DC, 48 V AC/DC
[In] rated current 6 A
Contacts type and composition 1 C/O
Product or component type socket
Complementary
Group of product RSL_CON_48-60
Compatibility code RSLZ
Sale per indivisible quantity 10
CAD overall height 78.6 mm
Fixing mode plastic compression spring (35 mm symmetrical DIN rail)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 3.6 kV
CAD overall depth 95 mm
CAD overall width 6.2 mm
Overvoltage category III
Connections - terminals connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw connectors
Net weight 0.023 kg
Tightening torque < 0.4 N.m for M2.5 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Ambient air temperature for operation -40-70 °C
Standards IEC 61984, UL 508
Product certifications CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.7 cm
Package 1 Width 8 cm
Package 1 Length 10.2 cm
Package 1 Weight 27 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.2 cm
Package 2 Width 8.5 cm
Package 2 Length 10.4 cm
Package 2 Weight 274 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 8.796 kg
