SKU:

RSL1AB4JD

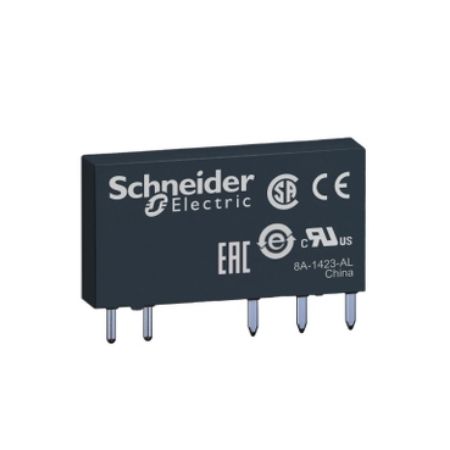

Harmony Electromechanical Relays, Slim interface plug in relay, 6A, 1CO, standard, 12V DC

Old price: $16.06 INC GST
$15.26 INC GST
This product has a minimum quantity of 10
Available for Shipping : 24-Jul-2025
Product Selector
Harmony Electromechanical Relays, Slim interface plug in relay, 6A, 1CO, standard, 12V DC
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
"This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RSL
[Uc] control circuit voltage 12 V, 12 V DC
Contact operation standard
Control type without push-button
Range of product Harmony Electromechanical Relays
[Ithe] conventional enclosed thermal current 6 A at -40-55 °C
[In] rated current 6 A
Contacts type and composition 1 C/O
Series name slim interface relay
Status LED without
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.05 Uc
Load current 6 A at 250 V AC 0.5 mm mounting distance
Operating position any position
Compatibility code RSL
Mechanical durability 10000000 cycles
Electrical durability 60000 cycles, 6 A at 250 V, AC-1 C/O
Average coil consumption 0.17 W
Device presentation complete product
Average resistance 848 Ohm at 23 °C +/- 10 %
Shape of pin flat (PCB type)
Contacts material silver alloy (AgSnO2)
Height 28 mm
Safety reliability data B10d = 60000
Maximum switching capacity 50 W, 1500 VA
Minimum switching voltage 12 V
Depth 18.5 mm
Width 5 mm
Operating time 12 ms, 5 ms reset
Minimum switching current 10 mA
[Ui] rated insulation voltage 277 V conforming to cUL, 250 V conforming to IEC
[Ie] rated operational current 6 A (AC-1/DC-1) conforming to IEC/UL
Rated operational voltage limits 9...16.8 V DC
Minimum switching capacity 120 mW
Maximum switching voltage 277 V
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC
Net weight 0.0054 kg
Mounting support socket or PCB
Test levels level A group mounting
Protection category RT III
Operating rate <= 18000 cycles/hour no-load, <= 360 cycles/hour under load
Terminals description ISO n°1 (11-12-14)OC, (A1-A2)CO
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Vibration resistance +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Dielectric strength 4000 V AC between coil and contact, 1000 V AC between contacts
Shock resistance 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, IEC 61810-1, UL 508
Product certifications UL, CSA, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 1.500 cm
Package 1 Length 2.800 cm
Package 1 Weight 5.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 0.700 cm
Package 2 Width 2.400 cm
Package 2 Length 30.500 cm
Package 2 Weight 68.000 g
Unit Type of Package 3 3
Number of Units in Package 3 500
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.810 kg
