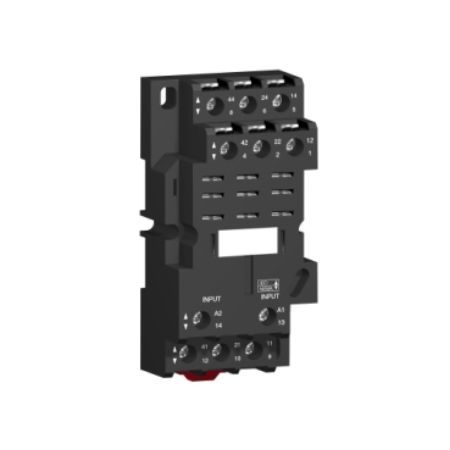

Picture of socket, Harmony Electromechanical Relays, for RPM3 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM3 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM3 power relays, 16A screw clamp terminals, mixed contact
SKU:

RPZF3

socket, Harmony Electromechanical Relays, for RPM3 power relays, 16A screw clamp terminals, mixed contact

Old price: $18.37 INC GST
$17.45 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
socket, Harmony Electromechanical Relays, for RPM3 power relays, 16A screw clamp terminals, mixed contact
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage < 250 V
Device short name RPZ
[In] rated current 16 A
Product compatibility plug-in relay RPM with 3 C/O contact
Contacts type and composition 3 C/O
Product or component type socket
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 16 A
Complementary
Group of product RPM_3_C/O_SC_TER_MIX_FLAT
Overvoltage category III
Width 40 mm
Compatibility code RPZ
Sale per indivisible quantity 10
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Net weight 0.072 kg
Contact terminal arrangement mixed
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Tightening torque < 1 N.m for M3.5 screw(s)
Connections - terminals screw clamp terminals
Environment
Ambient air temperature for storage -40-85 °C
Dielectric strength 2500 V
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Connections - terminals - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16,  - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14,  - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16,  - screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14
Standards IEC 61984
Ambient air temperature for operation -40-55 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 4.0 cm
Package 1 Length 8.5 cm
Package 1 Weight 77.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.3 cm
Package 2 Width 12 cm
Package 2 Length 20.2 cm
Package 2 Weight 770 g
Unit Type of Package 3 3
Number of Units in Package 3 150
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 12.45 kg
Unit Type of Package 4 4
Number of Units in Package 4 1200
Package 4 Height 75 cm
Package 4 Width 60 cm
Package 4 Length 80 cm
Package 4 Weight 107 kg

Related products

control accessories, Harmony Electromechanical Relays, for all RUM sockets, 24...240V AC DC

RUW101MW
$187.06 INC GST $196.90 INC GST
View Detail

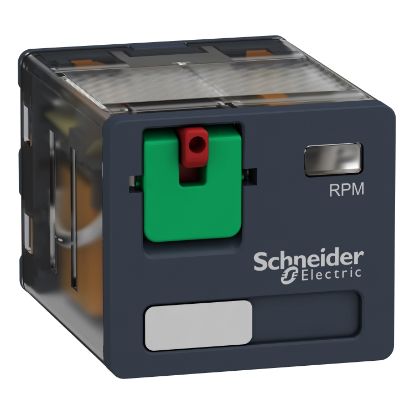

plug-in relay, Harmony electromechanical relays, 15A, 3CO, lockable test button, 120V AC

RPM31F7
$40.13 INC GST $42.24 INC GST
View Detail

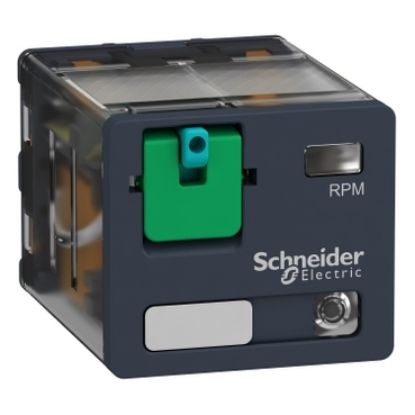

plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V DC

RPM32BD
$46.92 INC GST $49.39 INC GST
View Detail

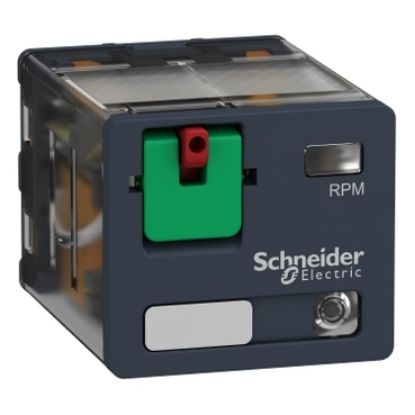

plug-in relay, Harmony electromechanical relays, 15A, 3CO, with LED, lockable test button, 24V AC
