RPF2AB7

power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2NO, 24V AC

Old price: $35.31 INC GST
$33.54 INC GST
Available for Shipping : 06-Aug-2025
power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2NO, 24V AC
Manufacturer: Schneider Electric

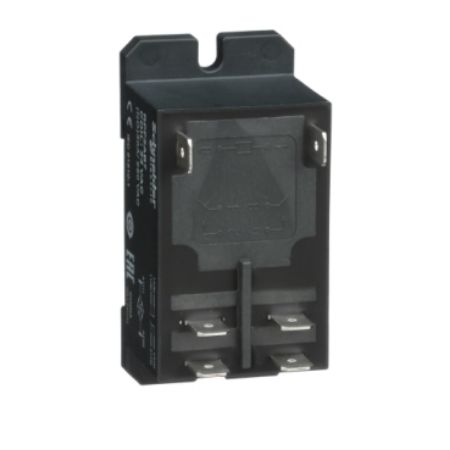

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 24V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RPF
[Uc] control circuit voltage 24 V, 24 V AC 50/60 Hz
Load current 30 A at 250 V AC, 25 A at 28 V DC
Control type without lockable test button
Shape of pin flat
Contacts material silver tin oxide
Range of product Harmony Electromechanical Relays
Utilisation coefficient 10 %
[Ithe] conventional enclosed thermal current 30 A at -40-55 °C 13 mm gap between two relays, 25 A at -40-55 °C relays side by side without a gap
[In] rated current 30 A
Contacts type and composition 2 NO
Series name Power
Product or component type DIN rail/panel mount relay
Connections - terminals quick-connect terminal
Complementary
Drop-out voltage threshold >= 0.15 Uc
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
Control circuit voltage limits 19.2...26.4 V
Operating position any position
Compatibility code RPF
Mechanical durability 5000000 cycles
Device presentation complete product
Average resistance 170 Ohm at 20 °C +/- 15 %
CAD overall height 68.5 mm
Electrical durability 100000 cycles for resistive load
Safety reliability data B10d = 100000
Maximum switching capacity 7500 VA/700 W
Minimum switching capacity 6000 mW 500 mA / 12 V for NO
CAD overall depth 39.2 mm
CAD overall width 33.7 mm
Operating time 25 ms
Minimum switching current 500 mA
[Ui] rated insulation voltage 300 V conforming to UL, 250 V conforming to IEC
[Ie] rated operational current 25 A at 28 V (DC) NO conforming to IEC, 30 A at 250 V (AC) NO conforming to IEC, 20 A at 28 V (DC) NO conforming to UL, 30 A at 277 V (AC) NO conforming to UL
Maximum switching voltage 250 V conforming to IEC
Net weight 0.082 kg
Reset time 25 ms
Mounting support panel, DIN rail
Test levels level A group mounting
Protection category RT II
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Average consumption 4 VA at 60 Hz
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Pollution degree 3
Shock resistance 30 gn for not operating, 10 gn for in operation
Vibration resistance 10 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 1500 V AC between contacts with micro disconnection, 4000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Standards CSA C22.2 No 14, IEC 61810-1, UL 508
Product certifications CE, GOST, CSA, UL
