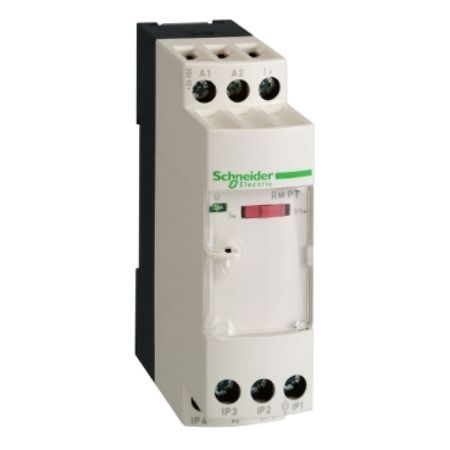

Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Picture of Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
SKU:

RMPT30BD

Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F

Old price: $499.95 INC GST
$474.95 INC GST
Available for Shipping : 23-Jul-2025
Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 0...100 degree COr 32...212 degree F
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This temperature transmitter is part of the range of Harmony Analog interfaces. It is designed to convert signal of Pt100 probe into standard electrical signal which is compatible with automation platforms, controllers. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. The cables used to connect the converters to process equipment (PLCs) are standard cables, which are more cost effective than extension cables or compensation cables suitable for low level signals for Pt100 probes or thermocouples. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Analogue input type temperature probe 0...100 °C/32..212 °F Pt 100 2, 3 or 4 wires
Range of product Harmony Analog
Product or component type converter for Universal Pt100 probes
Analogue output type voltage 0...10 V >= 100 kOhm, current 4...20 mA <= 500 Ohm, current 0...20 mA <= 500 Ohm
Complementary
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
Clamping connection capacity 2 x 1.5 mm², 1 x 2.5 mm²
Safety reliability data B10d = 30437, MTTFd = 32.9 years
Repeat accuracy +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C
Maximum wiring resistance 0.2 Ohm connection in 2 wires
Net weight 0.12 kg
Analogue output voltage 11...15 V when no input or input wire broken, -15...-11 V when no input or input wire broken
Current consumption <= 60 mA for current output, <= 40 mA for voltage output
Protection type reverse polarity protection on output, overvoltage protection on output (+/- 30 V), short-circuit protection on output, reverse polarity protection on power supply
Fixing mode fixed (mounting plate), clip-on (35 mm symmetrical DIN rail)
Marking CE
Measurement error +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m), +/- 1 % of full scale (2 wires) at 20 °C, +/- 0.5 % of full scale (3 or 4 wires) at 20 °C
Analogue output current 22-30 mA when no input or input wire broken, -30-0 mA when no input or input wire broken
Tightening torque 0.6-1.1 N.m
Temperature coefficient 150 ppm/°C
Local signalling LED (green) for power ON
[Ui] rated insulation voltage 2000 V
[Us] rated supply voltage 24 V DC non isolated +/- 20 %
Environment
Resistance to fast transients 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4
Fire resistance 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation 0-60 °C 2 cm spacing, 0-50 °C mounting side by side
Product certifications CSA, UL, GL
Pollution degree 2 conforming to IEC 60664-1
Disturbance radiated/conducted CISPR 11, CISPR 22 group 1 - class B
IP degree of protection IP50 (housing), IP20 (terminal block)
Electromagnetic compatibility electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Vibration resistance 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Standards EN/IEC 60584-1, EN/IEC 60947-1, EN/IEC 60751, DIN 43760
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.200 cm
Package 1 Length 8.500 cm
Package 1 Weight 108.000 g
Unit Type of Package 2 2
Number of Units in Package 2 47
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.531 kg
Unit Type of Package 3 3
Number of Units in Package 3 752
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 98.000 kg
