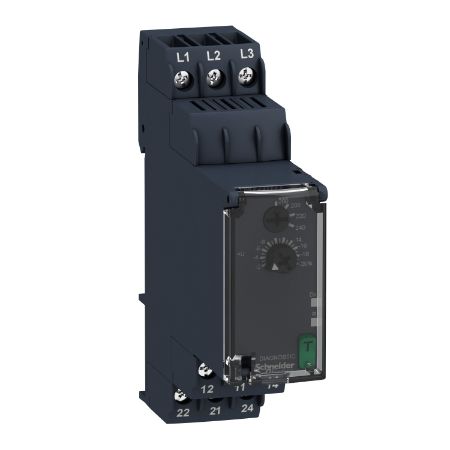

3-phase control relay, Harmony Control Relays, 8A, 2CO, undervoltage detection, 200…240V AC

Old price: $245.85 INC GST
$233.56 INC GST
Available for Shipping : 26-Aug-2025
Product Selector
3-phase control relay, Harmony Control Relays, 8A, 2CO, undervoltage detection, 200…240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
"This Harmony RM22-TU relay allows monitoring of phase and undervoltage/overtage in 3-phase networks." "This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 200...240 V
Relay type control relay
Relay name RM22TR
Measurement range 200...240 V voltage AC
Range of product Harmony Control Relays
[In] rated current 8 A
Relay monitored parameters phase failure detection, phase sequence, undervoltage detection
Time delay type without
Contacts type and composition 2 C/O
Network number of phases 3 phases
Product or component type 3-phase control relay
Switching capacity in VA 2000 VA
Connections - terminals screw connectors
Complementary
Run-up delay at power-up 650 ms
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Threshold adjustment voltage 2...20 % of Un selected
Control circuit voltage limits - 20 % + 20 % Un
Compatibility code RM22
Mechanical durability 10000000 cycles
Supply voltage limits 160-288 V AC
Time delay drift <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature
Functionality undervoltage detection
Control type with test button
Setting accuracy of the switching threshold +/- 10 % of the full scale
Voltage detection threshold < 100 V AC
Contacts material cadmium free
Power consumption in VA 10-10 VA at 240 V AC 60 Hz
Status LED LED (green) power ON, LED (yellow) relay ON
Measurement error < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Maximum switching current 8 A AC
Switching threshold drift <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature
Safety reliability data MTTFd = 388.1 years, B10d = 350000
Repeat accuracy +/- 0.5 % for input and measurement circuit
Supply frequency 50...60 Hz +/- 10 %
Electrical durability 100000 cycles
Width 22.5 mm
Mounting position any position
Housing material self-extinguishing plastic
Nominal output current 8 A
Mounting support 35 mm DIN rail conforming to IEC 60715
Setting accuracy of time delay 10 P
Overvoltage category III conforming to UL 508, III conforming to IEC 60664-1
Connections - terminals screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Reset time 1500 ms at maximum voltage
Insulation resistance > 100 MOhm at 500 V DC conforming to IEC 60255-27
Maximum switching voltage 250 V AC
Net weight 0.09 kg
Utilisation category DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1, DC-13 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1
Response time <= 300 ms
Output contacts 2 C/O
[Us] rated supply voltage self-powered,  AC/DC
Hysteresis 2-2 % fixed of selectable
Maximum measuring cycle 150 ms measurement cycle as true rms value
Minimum switching current 10 mA at 5 V DC
Voltage range 200...240 V phase to phase
Environment
Relative humidity 93-97 % at 25-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to UL 508, 3 conforming to IEC 60664-1
IP degree of protection IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-60 °C at 50 Hz AC/DC, -20-50 °C at 60 Hz
Electromagnetic compatibility conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B group 1 conforming to CISPR 11, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
Vibration resistance 0.5 gn (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 0.035 mm (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 1 gn (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6, 0.075 mm (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6
Shock resistance 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
Immunity to microbreaks 10 ms
Dielectric test voltage 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
Standards IEC 60255-1
Product certifications EAC, UL, CCC, GL, CSA, CE, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.600 cm
Package 1 Width 8.200 cm
Package 1 Length 9.500 cm
Package 1 Weight 101.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.442 kg
