RM22TG20

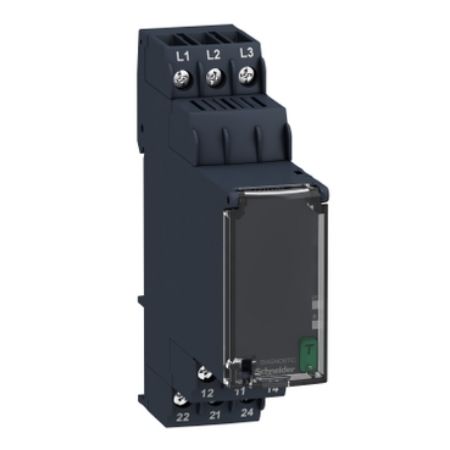

Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC

Old price: $174.46 INC GST
$165.74 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Image of product in real life situation
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony RM22TG control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 208...480 V
Relay type control relay
Relay name RM22TG
Measurement range 208...480 V voltage AC
Range of product Harmony Control Relays
[In] rated current 8 A
Relay monitored parameters phase failure detection (2 or more phase cut), phase sequence
Time delay type without
Contacts type and composition 2 C/O
Network number of phases 3 phases
Product or component type 3-phase control relay
Switching capacity in VA 2000 VA
Connections - terminals screw connectors
Complementary
Run-up delay at power-up 650 ms
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit voltage limits 183...528 V AC
Compatibility code RM22
Mechanical durability 10000000 cycles
Supply voltage limits 183-528 V AC
Control type with test button
Voltage detection threshold < 100 V AC
Contacts material cadmium free
Power consumption in VA 15-15 VA at 480 V AC 60 Hz
Status LED LED (green) power ON, LED (yellow) relay ON
Maximum switching current 8 A AC
Safety reliability data B10d = 850000, MTTFd = 924.6 years
Supply frequency 50...60 Hz +/- 10 %
Electrical durability 100000 cycles
Width 22.5 mm
Mounting position any position
Housing material self-extinguishing plastic
Mounting support 35 mm DIN rail conforming to IEC 60715
Overvoltage category III conforming to UL 508, III conforming to IEC 60664-1
Connections - terminals screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Reset time 1500 ms at maximum voltage
Insulation resistance > 100 MOhm at 500 V DC conforming to IEC 60255-27
Maximum switching voltage 250 V AC
Net weight 0.09 kg
Utilisation category DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1, DC-13 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1
Response time <= 200 ms
Output contacts 2 C/O
[Us] rated supply voltage self-powered,  AC/DC
Minimum switching current 10 mA at 5 V DC
Environment
Relative humidity 93-97 % at 25-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to UL 508, 3 conforming to IEC 60664-1
IP degree of protection IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-60 °C at 50 Hz AC/DC, -20-50 °C at 60 Hz
Electromagnetic compatibility conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B group 1 conforming to CISPR 11, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
Vibration resistance 0.5 gn (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 0.035 mm (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 1 gn (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6, 0.075 mm (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6
Shock resistance 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
Immunity to microbreaks 10 ms
Dielectric test voltage 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
Standards IEC 60255-1
Product certifications CCC, UL, CSA, GL, RCM, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 8.200 cm
Package 1 Length 9.500 cm
Package 1 Weight 104.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.616 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 86.180 kg
