SKU:

RM22LA32MR

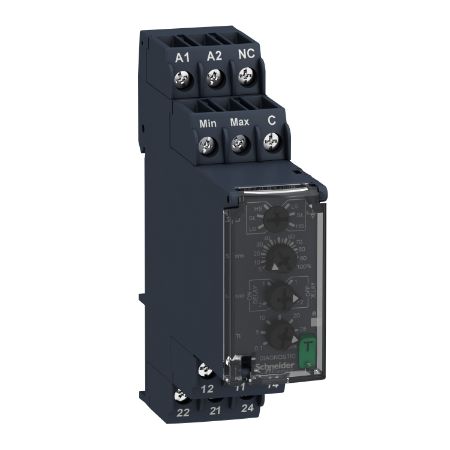

level control relay, Harmony Control Relays, 8A, 2CO, 24…240V AC DC

Old price: $260.70 INC GST
$247.66 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
level control relay, Harmony Control Relays, 8A, 2CO, 24…240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Declaration of conformity
Circularity Profile
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony RM22-LA relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 24...240 V
Relay type level control relay
Relay name RM22L
Range of product Harmony Control Relays
Maximum switching current 8 A AC
[In] rated current 8 A
Relay monitored parameters detection by resistive probes
Time delay type adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Contacts type and composition 2 C/O
Utilisation category DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1, DC-13 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1
Product or component type level control relay
Switching capacity in VA 2000 VA
Connections - terminals screw connectors
Minimum switching current 10 mA at 5 V DC
Complementary
Run-up delay at power-up 0.6 s, 2.5 s
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Maximum supply current for sensors 1 mA
Compatibility code RM22
Mechanical durability 10000000 cycles
Supply voltage limits 20.4-264 V AC/DC
Insulation between supply and measurement
Functionality resistive probe detection
Maximum electrode current 1 mA
Control type with test button
Contacts material cadmium free
Maximum cable distance between devices 100 m between probe and delay
Measurement error 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Maximum electrode voltage 12 V AC
Safety reliability data B10d = 170000, MTTFd = 182.6 years
Repeat accuracy +/- 2 % for time delay
Electrical durability 100000 cycles
Sensitivity adjustment 5-100 %
Maximum power consumption in W 1.5 W DC
Width 22.5 mm
Mounting position any position
Housing material self-extinguishing plastic
Nominal output current 8 A
Mounting support 35 mm DIN rail conforming to IEC 60715
Overvoltage category III conforming to IEC 60664-1
Connections - terminals screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Maximum switching voltage 250 V AC
Net weight 0.11 kg
Sensitivity scale 50...1000 kOhm HS (High Sensitivity), 5...100 kOhm St (Standard Sensitivity), 0.25...5 kOhm LS (Low Sensitivity)
Output contacts 2 C/O
[Us] rated supply voltage AC/DC non self-powered
Cable capacitance 4.7 nF at LS (Low Sensitivity) for probe cable, 2.2 nF at St (Standard Sensitivity) for probe cable, 1 nF at HS (High Sensitivity) for probe cable
Environment
Relative humidity 93-97 % at 25-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B group 1 conforming to CISPR 11, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
Vibration resistance 0.5 gn (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 0.035 mm (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 1 gn (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6, 0.075 mm (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6
Shock resistance 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
Immunity to microbreaks 90 ms AC, 100 ms DC
Dielectric test voltage 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
Standards IEC 60255-1
Product certifications EAC, CE, CCC, GL, CSA, RCM, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.6 cm
Package 1 Width 8.2 cm
Package 1 Length 9.5 cm
Package 1 Weight 122.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.492 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 60.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 95.14 kg

Related products

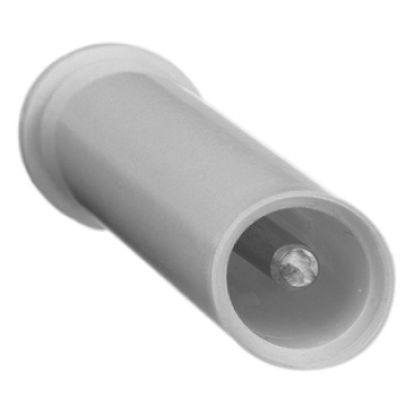

Harmony Control Relays, Probe for liquid level control, maximum operating temperature 100 degree C

LA9RM201
$159.59 INC GST $204.60 INC GST
View Detail

Harmony Control Relays, Probe for liquid level control, maximum operating temperature 200 degree C

RM79696043
$86.94 INC GST $91.52 INC GST
View Detail
