Picture of Harmony Control Relays, Modular 3 phase supply control relay, 5A, 2CO, 208...440V AC
SKU:

RM17TG20

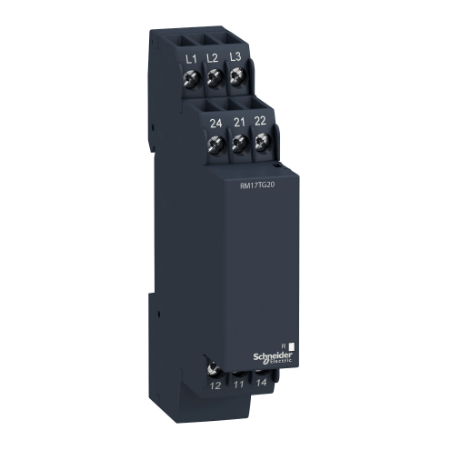

Harmony Control Relays, Modular 3 phase supply control relay, 5A, 2CO, 208...440V AC

Old price: $264.55 INC GST
$251.32 INC GST
Available for Shipping : 23-Jul-2025
Product Selector
Harmony Control Relays, Modular 3 phase supply control relay, 5A, 2CO, 208...440V AC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Technical illustration
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Relay type control relay
Product specific application for 3-phase supply
Contacts type and composition 2 C/O
Switching capacity in VA 1250 VA
[Uc] control circuit voltage 208...440 V
Relay name RM17TG
Measurement range 208...440 V voltage AC
Range of product Harmony Control Relays
[In] rated current 5 A
Relay monitored parameters phase failure detection (2 or more phase cut), phase sequence
Time delay type without
Product or component type 3-phase control relay
Connections - terminals screw connectors
Complementary
Run-up delay at power-up 650 ms
Compatibility code RM17
Insulation resistance > 500 MOhm at 500 V DC conforming to IEC 60664-1, > 500 MOhm at 500 V DC conforming to IEC 60255-5
Control circuit voltage limits - 12 % + 10 % Un
Safety reliability data MTTFd = 924.6 years, B10d = 850000
Electrical durability 10000 cycles
Housing material self-extinguishing plastic
Nominal output current 5 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
[Ui] rated insulation voltage 400 V conforming to IEC 60664-1
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Maximum switching voltage 250 V DC, 250 V AC
Net weight 0.13 kg
Minimum switching current 10 mA at 5 V DC
Supply frequency 50/60 Hz +/- 10 %
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit frequency 50...60 Hz +/- 10 %
Mechanical durability 30000000 cycles
Supply voltage limits 183-484 V AC
Control type without test button
Marking CE
Voltage detection threshold < 100 V AC
Power consumption in VA 0-22 VA at 400 V AC 50 Hz
Width 17.5 mm
Local signalling LED (yellow) for relay ON
Overvoltage category III conforming to IEC 60664-1
Measurement voltage limits 183-484 V AC
Utilisation category DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Operating position any position without derating
Response time <= 130 ms (in the event of a fault)
Output contacts 2 C/O
Operating rate <= 360 operations/hour full load
[Us] rated supply voltage self-powered
Voltage range 183...484 V
Environment
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Non-dissipating shock wave 4 kV
Dielectric test voltage 2 kV, 1 min AC 50 Hz
Product certifications GL, CSA, UL, C-Tick, GOST
Directives 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Electromagnetic compatibility immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60255-21-1
Standards IEC 60255-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 7.800 cm
Package 1 Length 9.700 cm
Package 1 Weight 98.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.150 kg
Unit Type of Package 3 3
Number of Units in Package 3 768
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 87.204 kg
