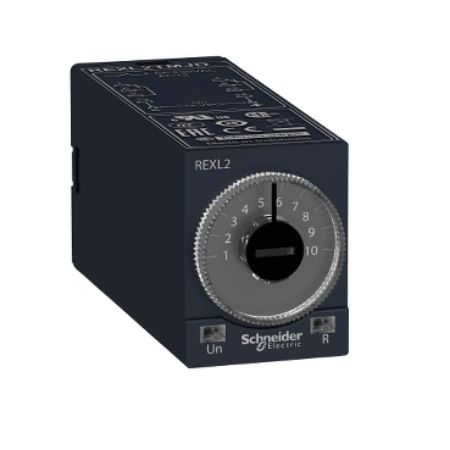

Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Picture of single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
SKU:

REXL2TMP7

single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC

Old price: $204.82 INC GST
$194.58 INC GST
Available for Shipping : 06-Aug-2025
Product Selector
single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Image of product in real life situation
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 21mm wide and can be supplied with 230V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 230 V
Time delay type power on-delay
Fixing mode plug-in (socket)
Range of product Harmony Timer Relays
Discrete output type relay
Output type relay
Width 21 mm
[In] rated current 5 A
Time delay range 1...10 s, 6...60 s, 6...60 min, 0.1...1 s, 1...10 h, 1...10 min, 10...100 h
Contacts type and composition 2 C/O
Component name REXL
Product or component type single function relay
Connections - terminals screw connectors
Complementary
Mechanical durability 10000000 cycles
Temporary permissible current 10 A for < 10 s
Surge withstand 2 kV conforming to IEC 61000-4-5 level 3
[Us] rated supply voltage 230 V AC 50/60 Hz
Temperature drift 0.05 %/°C
Functionality on-delay timing
Voltage range 0.85...1.15 Us
Contacts material cadmium free
Repeat accuracy +/- 0.5 %
Setting accuracy of time delay 10 % at full scale at 25 °C conforming to IEC 61812-1
Maximum switching capacity 4 x 5 A
Time delay type A
Local signalling 1 LED (yellow) for power ON, 1 LED (red) for output in operation
Minimum switching current 100 mA
[Ui] rated insulation voltage 250 V conforming to VDE 0010, 250 V conforming to IEC 255 Group C
Power consumption in VA 3 VA
Reset time 50 ms during time delay, on de-energisation, 250 ms after time delay, on de-energisation
Voltage drift +/- 0.2 %/V
Net weight 0.05 kg
Electrical durability 100000 cycles at 250 V AC resistive
Output overvoltage protection 2 J
Creepage distance 4 kV/3 conforming to IEC 60664-1
[In] rated current 5 A AC
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4 level 3
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2 level 3, 6 kV in contact conforming to IEC 61000-4-2 level 3
Relative humidity 95-95 % without condensation conforming to IEC 60068-2-6
Ambient air temperature for storage -40-70 °C
IP degree of protection IP50 conforming to IEC 60529
Immunity to voltage dips 60 % / 100 ms conforming to IEC 61000-4-11, 30 % / 10 ms conforming to IEC 61000-4-11, >= 95 % / 1 s conforming to IEC 61000-4-11
Immunity to microbreaks 5 ms
Disturbance radiated/conducted class B conforming to EN 55022 (EN 55011 group 1)
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3 level 3
Ambient air temperature for operation -20-60 °C
Dielectric strength 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1, 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 60601-1
Immunity to radioelectric fields 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 level 3
Vibration resistance 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Standards 93/68/EEC, IEC 60601-2, 73/23/EEC, IEC 61812-1, EN 50081-2, IEC 61000-6-2, 89/336/EEC, IEC 60601-1
Product certifications cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 3.0 cm
Package 1 Length 7.5 cm
Package 1 Weight 50.0 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.606 kg
