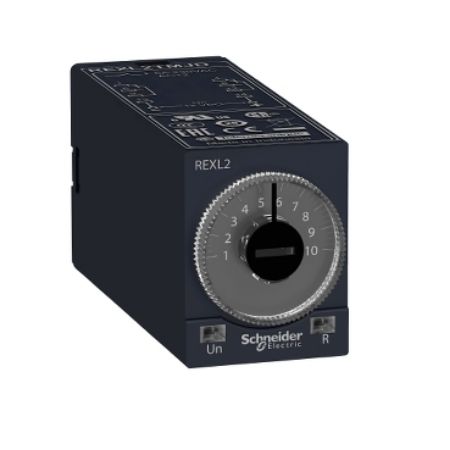

single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 12V DC

Old price: $204.82 INC GST
$194.58 INC GST
Available for Shipping : 31-Aug-2025
Product Selector
single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 12V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Image of product in real life situation
Declaration of conformity
Product Page Link
Product Data Sheet
"This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours." "It provides function A and it uses plug-in mounting." "This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It is a plug-in device, meaning it is quick and easy to install with the need for tools." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 12 V
Time delay type power on-delay
Output type relay
[In] rated current 5 A
Time delay range 6...60 s, 1...10 min, 1...10 h, 6...60 min, 1...10 s, 0.1...1 s, 10...100 h
Contacts type and composition 2 C/O
Fixing mode plug-in (socket)
Component name REXL
Product or component type single function relay
Range of product Harmony Timer Relays
Connections - terminals screw connectors
Discrete output type relay
Complementary
Maximum switching capacity 4 x 5 A
Time delay type A
Mechanical durability 10000000 cycles
Local signalling 1 LED (yellow) for power ON, 1 LED (red) for output in operation
Temporary permissible current 10 A for < 10 s
Minimum switching current 100 mA
[Ui] rated insulation voltage 250 V conforming to VDE 0010, 250 V conforming to IEC 255 Group C
Surge withstand 2 kV conforming to IEC 61000-4-5 level 3
[Us] rated supply voltage 12 V DC
Temperature drift 0.05 %/°C
Functionality on-delay timing
Reset time 50 ms during time delay, on de-energisation, 250 ms after time delay, on de-energisation
Voltage drift +/- 0.2 %/V
Net weight 0.05 kg
Electrical durability 100000 cycles at 250 V AC resistive
Voltage range 0.9...1.1 Us
Output overvoltage protection 2 J
Power consumption in W 1.5 W
Contacts material cadmium free
Repeat accuracy +/- 0.5 %
Creepage distance 4 kV/3 conforming to IEC 60664-1
[In] rated current 5 A AC
Setting accuracy of time delay 10 % at full scale at 25 °C conforming to IEC 61812-1
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4 level 3
Dielectric strength 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1, 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 60601-1
Immunity to radioelectric fields 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 level 3
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2 level 3, 6 kV in contact conforming to IEC 61000-4-2 level 3
Relative humidity 95-95 % without condensation conforming to IEC 60068-2-6
Ambient air temperature for storage -40-70 °C
IP degree of protection IP50 conforming to IEC 60529
Vibration resistance 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Immunity to voltage dips 60 % / 100 ms conforming to IEC 61000-4-11, 30 % / 10 ms conforming to IEC 61000-4-11, >= 95 % / 1 s conforming to IEC 61000-4-11
Immunity to microbreaks 5 ms
Disturbance radiated/conducted class B conforming to EN 55022 (EN 55011 group 1)
Standards EN 50081-2, IEC 61000-6-2, 73/23/EEC, IEC 60601-2, 89/336/EEC, IEC 60601-1, IEC 61812-1, 93/68/EEC
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3 level 3
Ambient air temperature for operation -20-60 °C
Product certifications cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.100 cm
Package 1 Width 3.100 cm
Package 1 Length 7.400 cm
Package 1 Weight 50.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.639 kg
