SKU:

RENF22R2MMW

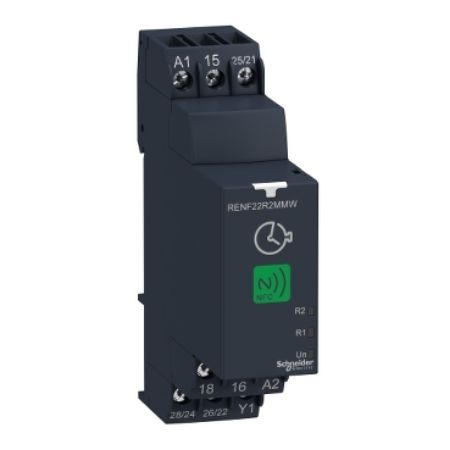

multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC

Old price: $274.89 INC GST
$261.15 INC GST
Available for Shipping : 30-Jul-2025
Product Selector
multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.

Products specifications

Attribute name Attribute value
Main
Device short name RENF22
[Uc] control circuit voltage 24...240 V
Software version V4.4 and above
Software designation Zelio NFC (downloadable from Google Play store)
Range of product Harmony Timer Relays
Output type relay
[In] rated current 5 A
Contacts type and composition 2 C/O
Operating system Android
Product or component type multifunction relay
Connections - terminals screw connectors
Complementary
Tightening torque 5.3-8.8 lbf.in conforming to IEC 60947-1, 0.6-1 N.m conforming to IEC 60947-1
Product compatibility NFC enabled mobile device
Time delay type bistable, asymmetrical flashing, star-delta, safe-guard, symmetrical flashing, off-delay, interval, asymmetrical on-delay and off-delay, pulse delay, on-delay and off-delay, power on-delay
Safety reliability data MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles for resistive load, 8 A at 250 V, AC
Minimum switching current 10 mA at 5 V
[Us] rated supply voltage 24...240 V AC/DC
Temperature drift +/- 0.05 %/°C
Maximum switching voltage 250 V
Voltage range 0.85...1.1 Un
Maximum switching current 8 A
Minimum pulse duration 60 ms no-load, 100 ms with load in parallel
Power consumption in VA 3-3 VA at 240 V AC
Nominal power 0.0002 mW
Insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
Maximum delay response 100 ms
Setting accuracy of time delay +/- 30 ms for 50...100 ms time delay range at 25 °C, +/- 20 ms for 100 ms...10 s time delay range at 25 °C, +/- 2 % for 1...3600 s time delay range at 25 °C, +/- 1 % for 1...999 h time delay range at 25 °C
Discrete output type relay
Contacts type and composition 1 C/O timed and instantaneous contact, cadmium free, 2 C/O timed contact, cadmium free
Repeat accuracy +/- 0.7 % for 50...100 ms time delay range, +/- 0.5 % for 100 ms...10 s time delay range, +/- 0.2 % for 10 s...999 h time delay range
Supply frequency 50...60 Hz +/- 5 %
Maximum operating frequency 13.56 MHz
Width 22.5 mm
Mounting position any position
Housing material self-extinguishing
Nominal output current 8 A
Mounting support 35 mm DIN rail conforming to IEC 60715
Input voltage <= 2.4 V
Overvoltage category III conforming to IEC 60664-1
Time delay range 0.05 s...999 h
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Reset time 120 ms on de-energisation
Voltage drift +/- 0.2 %/V
[Uimp] rated impulse withstand voltage 5 kV 1.2/50 µs conforming to IEC 60664-1
Local signalling LED R2: (blinking), amber for timing in progress, LED R1: (blinking), amber for timing in progress, LED Un: (fast blinking), green for diagnosis mode, LED pairing: (steady), green for communication status, LED R2: (steady), amber for relay energised, LED R1: (steady), amber for relay energised, LED Un: (steady), green for power ON
Net weight 0.0904 kg
Operating distance 10 mm
Function available L- Asymmetrical flashing relay (starting pulse-off)-2 C/O, W- Interval relay w/ control signal off-2 C/O, Tt- Retriggerable bistable relay w/ control signal on-2 C/O, TI- Bistable relay w/ control signal on-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O, P- Pulse delayed relay w/ fixed pulse length-2 C/O, O- Delayed Safe-guard relay-2 C/O, N- Safe-guard relay-2 C/O, Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O, H- Interval relay-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, C- Off-delay relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, B- Single interval relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O, Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O, Ad- Pulse delayed relay w/ control signal-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, A- Power on-delay relay-2 C/O
Switching capacity in VA 2000 VA
Creepage distance 4 kV/3 conforming to IEC 60664-1
Power consumption in W 0.6 W at 24 V DC, 1.5 W at 240 V DC
Environment
IP degree of protection IP20 terminals: conforming to IEC 60529, IP40 front face: conforming to IEC 60529, IP40 housing: conforming to IEC 60529
Relative humidity 95-95 % at 25-55 °C
Ambient air temperature for storage -40-70 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/53/EU - radio equipment directive, 2014/35/EU - low voltage directive
Pollution degree 3 conforming to IEC 60664-1
Electromagnetic compatibility electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, conducted emission class A conforming to EN 55022, radiated emission class B conforming to EN 55022, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Immunity to microbreaks 10 ms
Ambient air temperature for operation -20-60 °C
Vibration resistance 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 5 gn in operation for 11 ms conforming to IEC 60068-2-27, 15 gn not operating for 11 ms conforming to IEC 60068-2-27
Dielectric strength with basic insulation, 2.5 kV for 1 mA/1 minute at 50 Hz with between relay output and power supply with basic insulation
Standards IEC 61000-6-3, EN 61812-1, IEC 61000-6-4, IEC 61000-6-2, IEC 61000-6-1
Product certifications DNV-GL, EAC, CCC, UL, KC, CSA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.4 cm
Package 1 Width 8.05 cm
Package 1 Length 9.45 cm
Package 1 Weight 103.635 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.616 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 70.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 84.13 kg
