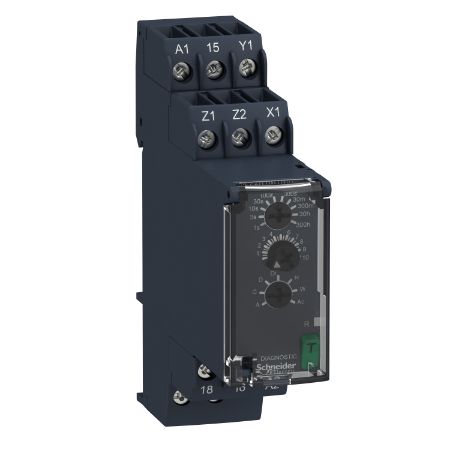

Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Picture of multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
SKU:

RE22R1MYMR

multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC

Old price: $281.60 INC GST
$267.52 INC GST
Available for Shipping : 07-Aug-2025
Product Selector
multifunction relay, Harmony Timer Relays, 8A, 1 CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Circularity Profile
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Catalog
Image of product in real life situation
CAD
Product Page Link
Product Data Sheet
This Harmony RE22 modular multi function timer can be set between 1 seconds and 300 hours. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RE22
[Uc] control circuit voltage 24...240 V
Range of product Harmony Timer Relays
Discrete output type relay
Output type relay
[In] rated current 5 A
Nominal output current 8 A
Contacts type and composition 1 C/O
Product or component type multifunction relay
Connections - terminals screw connectors
Complementary
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Time delay type interval, symmetrical flashing, on-delay and off-delay, off-delay, power on-delay, A, Ac, Act, At, Aw, C, Ct, D, Di, Dit, Diw, Dt, Dw, H, Ht, Hw, W, Wt
[Uimp] rated impulse withstand voltage 5 kV for 1.2-50 µs conforming to IEC 60664-1
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 8 A at 250 V, AC-1
Minimum switching current 10 mA at 5 V DC
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz
Temperature drift +/- 0.05 %/°C
Functionality multifunction
Contacts type and composition 1 C/O, 1 C/O timed contact, cadmium free
Maximum switching voltage 250 V AC
Voltage range 0.85...1.1 Us
Maximum switching current 8 A
Minimum pulse duration 30 ms, 100 ms with load in parallel
Power consumption in VA 3-3 VA at 240 V AC
Immunity to microbreaks 10 ms
Insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
Control type potentiometer external, diagnostic button, rotary knob
Maximum delay response 100 ms
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Safety reliability data B10d = 190000, MTTFd = 205.4 years
Repeat accuracy +/- 0.5 % conforming to IEC 61812-1
Supply frequency 50...60 Hz +/- 5 %
Width 22.5 mm
Status LED LED yellow (slow flashing) for timing in progress and output relay energised, LED yellow (fast flashing) for timing in progress and output relay de-energised, LED yellow (steady) for output relay energised, LED backlight green (steady) for dial pointer indication
Housing material self-extinguishing
Mounting support 35 mm DIN rail conforming to IEC 60715
Input voltage <= 2.4 V
Overvoltage category III conforming to IEC 60664-1
Time delay range 3...30 h, 1...10 s, 30...300 h, 0.05...1 s, 0.3...3 s, 3...30 min, 30...300 min, 3...30 s, 10...100 s, 30...300 s
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Reset time 120 ms on de-energisation
Voltage drift +/- 0.2 %/V
Mounting position any position
Net weight 0.1 kg
Function available Wt- Interval relay w/ control signal off and pause/summation-1 C/O, W- Interval relay w/ control signal off-1 C/O, Hw- Interval relay w/ retrigger/restart-1 C/O, Ht- Interval relay w/ pause/summation (X1)-1 C/O, H- Interval relay-1 C/O, Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-1 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-1 C/O, Di- Symmetrical flashing relay (starting pulse-on)-1 C/O, Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-1 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-1 C/O, D- Symmetrical flashing relay (starting pulse-off)-1 C/O, Ct- Off-delay relay w/ control signal and pause/summation-1 C/O, C- Off-delay relay w/ control signal-1 C/O, Act- On-delay and off-delay relay w/ control signal and pause/summation-1 C/O, Aw- Power on-delay relay w/ retrigger/restart-1 C/O, At- Power on-delay relay w/ pause/summation (X1)-1 C/O, Ac- On-delay and off-delay relay w/ control signal-1 C/O, A- Power on-delay relay-1 C/O
Switching capacity in VA 2000 VA
Creepage distance 4 kV/3 conforming to IEC 60664-1
Power consumption in W 1.5 W at 240 V DC
Environment
IP degree of protection IP20 terminals: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP40 housing: conforming to IEC 60529
Relative humidity 95-95 % at 25-55 °C
Ambient air temperature for storage -40-70 °C
Directives 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility
Pollution degree 3 conforming to IEC 60664-1
Electromagnetic compatibility immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4
Ambient air temperature for operation -20-60 °C
Vibration resistance 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 5 gn in operation for 11 ms conforming to IEC 60068-2-27, 15 gn not operating for 11 ms conforming to IEC 60068-2-27
Dielectric strength 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
Standards UL 508, IEC 61812-1
Product certifications UL, CCC, CSA, CE, EAC, GL, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.900 cm
Package 1 Width 8.600 cm
Package 1 Length 10.000 cm
Package 1 Weight 101.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.500 kg
