Picture of AccuSine+ current transformer - 3000/5 - Rectangular Split Core - 69.8x168.2mm
SKU:

PCSPCTFCL30005R

AccuSine+ current transformer - 3000/5 - Rectangular Split Core - 69.8x168.2mm

$4,554.00 INC GST
Available for Shipping : 28-Jul-2025
AccuSine+ current transformer - 3000/5 - Rectangular Split Core - 69.8x168.2mm
Be the first to review this product
Manufacturer: Square D
Product Page Link
Product Data Sheet

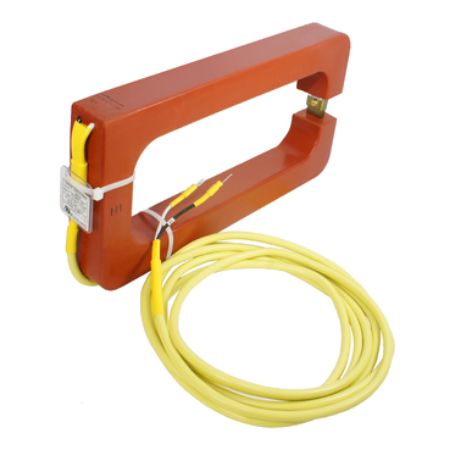

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 3000A and a secondary rating of 5A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.

Products specifications

Attribute name Attribute value
Main
Shape rectangular
Current transformer type split core
Range AccuSine
Product or component type current transformer
Accessory / separate part category measurement accessory
Range compatibility AccuSine AccuSine PFV+ electronic VAR controller, AccuSine AccuSine PCS+ active harmonic filter
Secondary current 5 A
Complementary
Accuracy class class 1
[Uimp] rated impulse withstand voltage 10 kV (50 µs)
Continuous thermal current rating factor 1 at 55 °C, 1.25 at 30 °C
[In] rated current 3000 A
Input impedance 1.8 Ohm
Height 168.2 mm inner: , 238 mm outside:
Width 69.8 mm inner: , 139.7 mm outside:
Measurement accuracy 1 %
Current transformer ratio 5/1/3000 12:00:00 AM
Depth 38.1 mm outside:
Net weight 1.9 kg
Electrical connection flying lead: 3.65 m720 V
[Ue] rated operational voltage < 720 V AC 50...400 Hz
Network frequency 50...400 Hz
Environment
Standards IEC 60044-1
Ambient air temperature for operation -45-55 °C
Product certifications CE, cURus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.2 cm
Package 1 Width 28.3 cm
Package 1 Length 38.1 cm
Package 1 Weight 2.0 kg
