SKU:

NSYZM283G

Thalassa, Polyester glassreinforced plinth for encl PLM108 front opening IP44-IK10 RAL7035

Old price: $470.25 INC GST
$423.22 INC GST
Available for Shipping : 12-Aug-2025

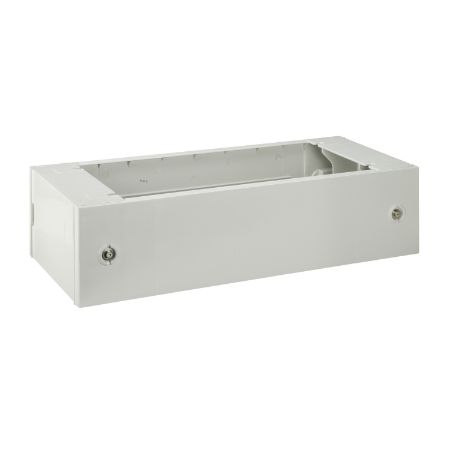

Thalassa, Polyester glassreinforced plinth for encl PLM108 front opening IP44-IK10 RAL7035
Manufacturer: Schneider Electric
Plinth to be used with Thalassa PLM enclosures The plinth is to be used in multi-purpose applications The width is 772mm The height is 200mm The depth is 352mm The kit is made of fixing elements, 2 front panels and 2 side parts The product is made of grey Material : Plastic (RAL 7035) Ingress protection rating is IP44 Mechanical protection rating is IK10 This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Device composition 2 side part, 2 front panel, fixing elements
Range Thalassa
Product or component type plinth
Accessory / separate part category enclosure accessory
Range compatibility Thalassa Thalassa PLM
Enclosure nominal dimensions -
Complementary
Colour plinth: grey (RAL 7035)
Height 200 mm
Width 772 mm
Depth 352 mm
Fixing mode by screws - on side parts location
Environment
IP degree of protection IP44
IK degree of protection IK10
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.500 cm
Package 1 Width 21.500 cm
Package 1 Length 80.000 cm
Package 1 Weight 8.606 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 122.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 271.180 kg
