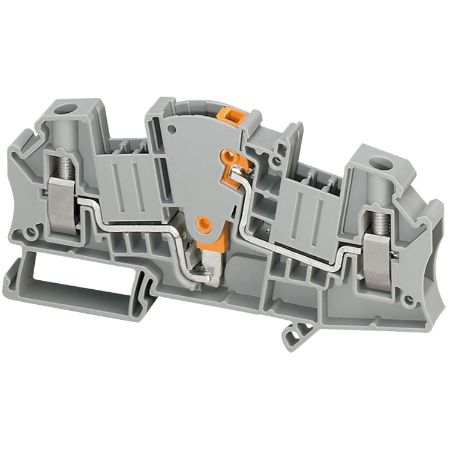

Picture of Screw terminal, Linergy TR, disconnect, measuring transducer, 2 points, 6mm², grey
SKU:

NSYTRV62TTD

Screw terminal, Linergy TR, disconnect, measuring transducer, 2 points, 6mm², grey

Old price: $10.07 INC GST
$9.06 INC GST
Available for Shipping : 24-Jul-2025
Screw terminal, Linergy TR, disconnect, measuring transducer, 2 points, 6mm², grey
  • It belongs to linergy measuring terminal block with 6 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRV
Colour grey
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Accessory / separate part category connection accessory
Range of product Linergy
Nominal cross section 6 mm²
Terminal block level 1
Length 100.8 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type blade disconnect
Complementary
Product compatibility Spacial enclosures
Tightening torque 1.5-1.8 N.m
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 10 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 6
Connection position inclined
Height 49.6 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V CSA, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current 30-30 A CSA, 30-30 A cURus, 30-30 A conforming to EN/IEC 60947-7-1
Width 8.2 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Net weight 28.2 g
Cable cross section 0.2-6 mm², flexible with cable end, 0.2-10 mm², flexible without cable end, 0.2-10 mm², solid
Number of terminals 2
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications CSA, EAC, cURus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 7.000 cm
Package 1 Length 13.500 cm
Package 1 Weight 29.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.000 cm
Package 2 Width 7.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 1.472 kg
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 12.106 kg
