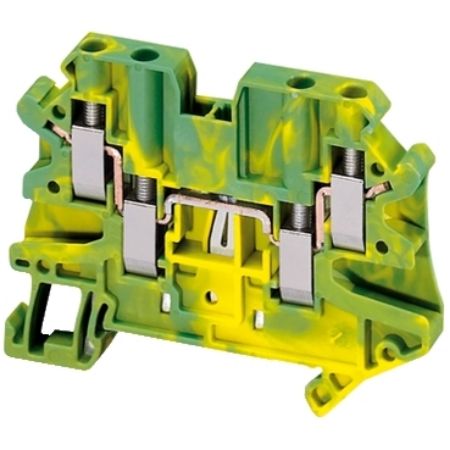

Picture of Linergy, Screw Terminal, Protective Earth, 4 Points, 4mm², Green-Yellow
SKU:

NSYTRV44PE

Linergy, Screw Terminal, Protective Earth, 4 Points, 4mm², Green-Yellow

Old price: $16.06 INC GST
$14.45 INC GST
Available for Shipping : 03-Aug-2025
Linergy, Screw Terminal, Protective Earth, 4 Points, 4mm², Green-Yellow
  • It belongs to linergy Double deck protective earth terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 2x2 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 65.4 mm
Device short name TRV
Colour green-yellow
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type protective earth
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 2
Connection position sideways
Connections - terminals 2 x screw terminal: upstream, 2 x screw terminal: downstream
Height 47.5 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 21.5 g
Number of terminals 4
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Cable cross section 0.14-6 mm², flexible without cable end, 0.2-4 mm², flexible with cable end, 0.14-6 mm², solid
Environment
Product certifications IEC-Ex, EAC, LR, CSA, cURus, ATEX, GL, DNV
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 10.000 cm
Package 1 Length 8.670 cm
Package 1 Weight 21.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.000 cm
Package 2 Width 10.000 cm
Package 2 Length 26.000 cm
Package 2 Weight 1.074 kg
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.089 kg
