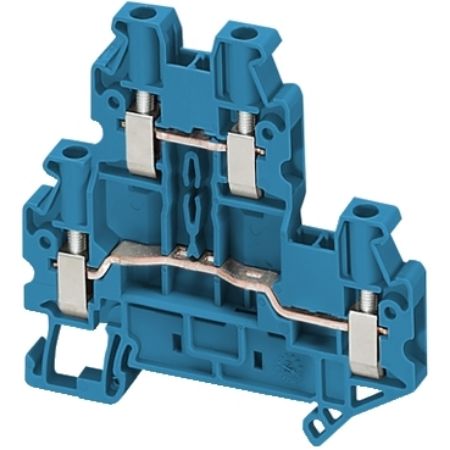

Picture of Terminal block, Linergy TR, blue, 4mm2, double level, 4 points, set of 10
SKU:

NSYTRV44DBL

Terminal block, Linergy TR, blue, 4mm2, double level, 4 points, set of 10

Old price: $10.84 INC GST
$9.76 INC GST
Available for Shipping : 09-Sep-2025
Terminal block, Linergy TR, blue, 4mm2, double level, 4 points, set of 10
  • It belongs to linergy passthrough terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRV
Colour blue
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Accessory / separate part category connection accessory
Range of product Linergy
Nominal cross section 4 mm²
Terminal block level 2
Length 69.9 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 9 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 4
Connection position sideways
Height 65 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 440 V conforming to ATEX Exe II Ex II 2 GD, 800 V conforming to EN/IEC 60947-7-1, 600 V cURus, 600 V CSA
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current 25.5-25.5 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A conforming to EN/IEC 60947-7-1, 30-30 A cURus, 30-30 A CSA
Width 6.2 mm
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section 0.14-6 mm², solid cable without cable end, 0.14-6 mm², flexible cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end
Dielectric constant 3.7 at 1 MHz
Connections - terminals 1 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Net weight 17 g
Number of terminals 2
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications EAC, ATEX, IEC-Ex, DNV, cURus, CSA, LR, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 7.6 cm
Package 1 Length 31.6 cm
Package 1 Weight 18.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 7.0 cm
Package 2 Width 7.6 cm
Package 2 Length 31.6 cm
Package 2 Weight 971.0 g
