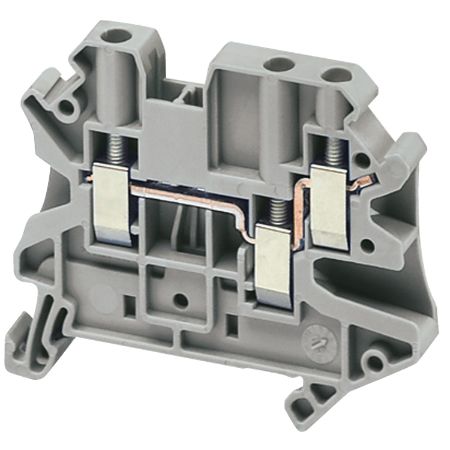

Picture of Linergy, Screw Terminal, Feed Through, 3 Points, 4mm² , Grey
SKU:

NSYTRV43

Linergy, Screw Terminal, Feed Through, 3 Points, 4mm² , Grey

Old price: $2.41 INC GST
$2.17 INC GST
Available for Shipping : 24-Jul-2025
Linergy, Screw Terminal, Feed Through, 3 Points, 4mm² , Grey
  • It belongs to linergy passthrough terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Accessory / separate part category connection accessory
Terminal block level 1
Length 57.8 mm
Device short name TRV
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 2
Connection position sideways
Height 47.5 mm
[In] rated current 29-29 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A cURus, 32-32 A conforming to EN/IEC 60947-7-1
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section 0.14-6 mm², solid cable without cable end, 0.14-6 mm², flexible cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end
Dielectric constant 3.7 at 1 MHz
Net weight 14 g
Number of terminals 3
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 150 V cURus, 352 V conforming to ATEX Exe II Ex II 2 GD, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Connections - terminals 2 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Environment
Product certifications DNV, ATEX, GL, LR, IEC-Ex, cURus, CSA, EAC
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 6.100 cm
Package 1 Length 7.950 cm
Package 1 Weight 13.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.300 cm
Package 2 Width 6.100 cm
Package 2 Length 31.800 cm
Package 2 Weight 689.000 g
Unit Type of Package 3 3
Number of Units in Package 3 500
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.353 kg

Related products

Picture of Marking strip, Linergy TR, clip in type, 6mm, characters 1 to 10, printed horizontal, numeric, set of 10

Marking strip, Linergy TR, clip in type, 6mm, characters 1 to 10, printed horizontal, numeric, set of 10

NSYTRAB610
$1.56 INC GST $1.73 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 6mm, characters 91 to 100, printed horizontal, numeric, Set of 10

Marking strip, Linergy TR, clip in type, 6mm, characters 91 to 100, printed horizontal, numeric, Set of 10

NSYTRAB6100
$1.56 INC GST $1.73 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 6mm, printed characters 11 to 20, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 6mm, printed characters 11 to 20, printed horizontal, white, Set of 10

NSYTRAB620
$1.56 INC GST $1.73 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10

NSYTRAB630
$1.56 INC GST $1.73 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10

NSYTRAB640
$1.56 INC GST $1.73 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10

NSYTRAB650
$1.56 INC GST $1.73 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 6mm, printed characters 51 to 60, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 6mm, printed characters 51 to 60, printed horizontal, white, Set of 10

NSYTRAB660
$1.56 INC GST $1.73 INC GST
View Detail

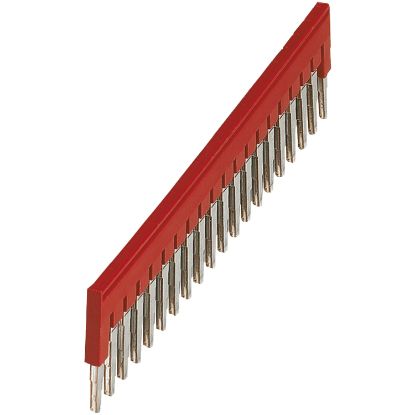

Picture of Linergy, Plug-in bridge, Linergy TR, 20 points, for 4mm² terminal blocks, red, 20 way, set of 10
