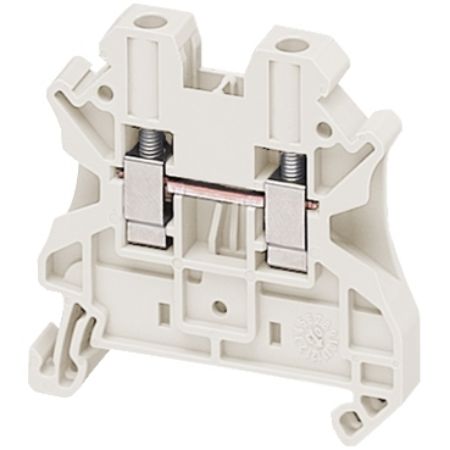

Picture of Terminal block, Linergy TR, white, 4mm2, passthrough, 2 points, set of 10
SKU:

NSYTRV42WH

Terminal block, Linergy TR, white, 4mm2, passthrough, 2 points, set of 10

Old price: $3.10 INC GST
$2.79 INC GST
Available for Shipping : 24-Jul-2025
Terminal block, Linergy TR, white, 4mm2, passthrough, 2 points, set of 10
  • It belongs to linergy passthrough terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Accessory / separate part category connection accessory
Terminal block level 1
Length 47.7 mm
Device short name TRV
Colour white
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 2
Connection position sideways
Height 47.5 mm
[In] rated current 30-30 A cURus, 30-30 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A CSA, 32-32 A conforming to EN/IEC 60947-7-1
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section 0.2-6 mm², flexible cable without cable end, 0.2-6 mm², solid cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end
Dielectric constant 3.7 at 1 MHz
Net weight 9.4 g
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V cURus, 690 V conforming to ATEX Exe II Ex II 2 GD, 600 V CSA, 1000 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Connections - terminals 1 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Environment
Product certifications VDE, CSA, IEC-Ex, DNV, ATEX, cURus, GL, EAC, LR
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 7.000 cm
Package 1 Length 6.250 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.000 cm
Package 2 Width 7.000 cm
Package 2 Length 25.000 cm
Package 2 Weight 479.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1150
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.454 kg
