Picture of Mini terminal block, Linergy TR, green-yellow, 2.5 mm2, protective earth, 2 points, for 15mm din rail, Set of 50
SKU:

NSYTRV22MPE

Mini terminal block, Linergy TR, green-yellow, 2.5 mm2, protective earth, 2 points, for 15mm din rail, Set of 50

Old price: $7.04 INC GST
$6.34 INC GST
Available for Shipping : 09-Sep-2025
Mini terminal block, Linergy TR, green-yellow, 2.5 mm2, protective earth, 2 points, for 15mm din rail, Set of 50
  • It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRV
Colour green-yellow
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 2.5 mm²
Terminal block level 1
Length 30 mm
Product name Linergy TR
Product or component type mini terminal block
Terminal block type protective earth
Complementary
Product compatibility Spacial enclosures
Tightening torque 0.5-0.6 N.m
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 9 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 1
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 34 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 5.2 mm
Material polyamide 6/6: insulating case
Cable cross section 0.14-4 mm², flexible without cable end, 0.2-2.5 mm², flexible with cable end, 0.2-4 mm², solid
Number of terminals 2
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications EAC, CSA, VDE, IEC-Ex, cURus, ATEX
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 7.0 cm
Package 1 Length 27.0 cm
Package 1 Weight 6.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.0 cm
Package 2 Width 7.0 cm
Package 2 Length 27.0 cm
Package 2 Weight 351.0 g

Related products

Picture of Marking strip, Linergy TR, clip in type, 5mm, printed characters 61 to 70, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 5mm, printed characters 61 to 70, printed horizontal, white, Set of 10

NSYTRAB570
$1.50 INC GST $1.67 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 5mm, printed characters 71 to 80, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 5mm, printed characters 71 to 80, printed horizontal, white, Set of 10

NSYTRAB580
$1.50 INC GST $1.67 INC GST
View Detail
Picture of Marking strip, Linergy TR, clip in type, 5mm, printed characters 81 to 90, printed horizontal, white, Set of 10

Marking strip, Linergy TR, clip in type, 5mm, printed characters 81 to 90, printed horizontal, white, Set of 10

NSYTRAB590
$1.50 INC GST $1.67 INC GST
View Detail
Picture of Linergy, Marking card, Linergy TR, with 6 strips, 5mm, unprinted, 72 characters, white, Set of 10

Linergy, Marking card, Linergy TR, with 6 strips, 5mm, unprinted, 72 characters, white, Set of 10

NSYTRABPV5
$12.18 INC GST $13.53 INC GST
View Detail
Picture of Cover plate, Linergy TR, 1mm width, for mini screw terminals NSYTRV-2M, , grey, Set of 50

Cover plate, Linergy TR, 1mm width, for mini screw terminals NSYTRV-2M, , grey, Set of 50

NSYTRACM22
$1.50 INC GST $1.67 INC GST
View Detail
Picture of Linergy, Marking strip, Linergy TR, clip in type, 5mm, 100 characters 1 to 100, printed horizontal, numeric, set of 10

Linergy, Marking strip, Linergy TR, clip in type, 5mm, 100 characters 1 to 100, printed horizontal, numeric, set of 10

NSYTRAB51100
$14.36 INC GST $15.95 INC GST
View Detail

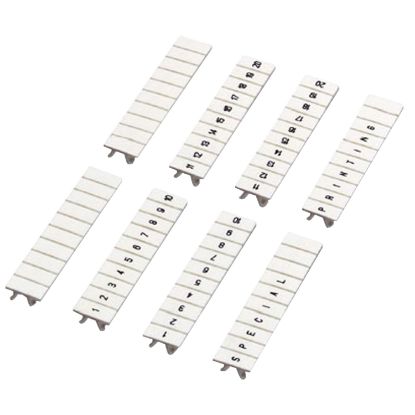

Picture of Marking strip, Linergy TR, clip in type, 5mm, characters L1,L2,L3,N,PE, printed horizontal, symbolic, Set of 10

Marking strip, Linergy TR, clip in type, 5mm, characters L1,L2,L3,N,PE, printed horizontal, symbolic, Set of 10

NSYTRAB5L1N
$2.23 INC GST $2.48 INC GST
View Detail

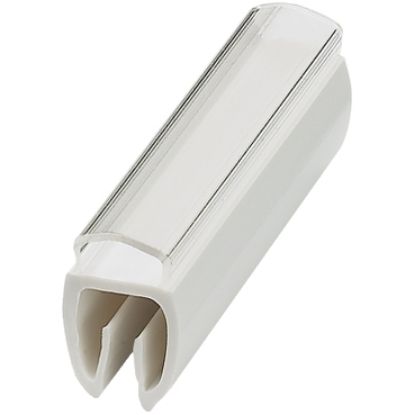

Picture of Marking sleeve, Linergy TR, clip on, for cables with C.S.A. from 2mm to 3.5mm, set of 500
