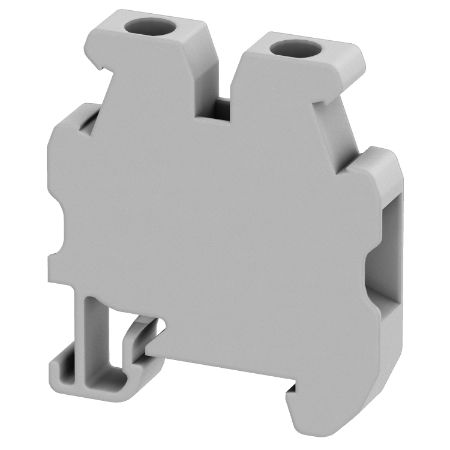

Picture of Mini terminal block, Linergy TR, gray, 2.5 mm2, Passthrough, 2 points, for 15mm din rail
SKU:

NSYTRV22M

Mini terminal block, Linergy TR, gray, 2.5 mm2, Passthrough, 2 points, for 15mm din rail

Old price: $2.82 INC GST
$2.54 INC GST
Available for Shipping : 12-Aug-2025
Mini terminal block, Linergy TR, gray, 2.5 mm2, Passthrough, 2 points, for 15mm din rail
  • It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Accessory / separate part category connection accessory
Terminal block level 1
Length 30 mm
Device short name TRV
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 2.5 mm²
Product name Linergy TR
Product or component type mini terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 1
Connection position sideways
Height 34 mm
[In] rated current 20-20 A conforming to ATEX Exe II Ex II 2 GD, 20-20 A CSA, 20-20 A cURus, 24-24 A conforming to EN/IEC 60947-7-1
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section 0.14-4 mm², flexible cable without cable end, 0.14-4 mm², solid cable without cable end, 0.2-2.5 mm², flexible cable with cable end, 0.14-4 mm², solid cable with cable end
Dielectric constant 3.7 at 1 MHz
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.5-0.6 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 500 V conforming to ATEX Exe II Ex II 2 GD, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1, 600 V CSA
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 5.2 mm
Connections - terminals 1 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Environment
Product certifications ATEX, CSA, cURus, IEC-Ex, VDE, EAC
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.5 cm
Package 1 Width 3.0 cm
Package 1 Length 3.3 cm
Package 1 Weight 5.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.0 cm
Package 2 Width 7.5 cm
Package 2 Length 14.7 cm
Package 2 Weight 264.0 g
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 4.566 kg
