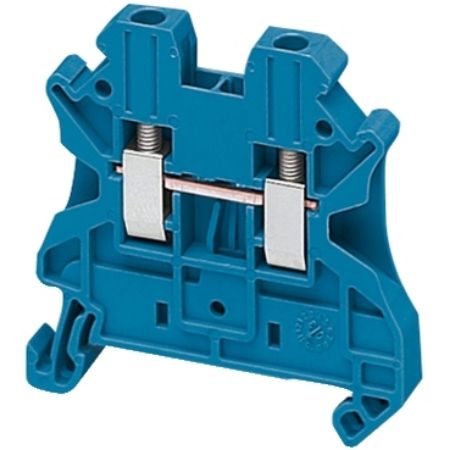

Picture of Terminal block, Linergy TR, blue, 2.5mm2, passthrough, 2 points, set of 10
SKU:

NSYTRV22BL

Terminal block, Linergy TR, blue, 2.5mm2, passthrough, 2 points, set of 10

Old price: $2.71 INC GST
$2.44 INC GST
Available for Shipping : 24-Jul-2025
Terminal block, Linergy TR, blue, 2.5mm2, passthrough, 2 points, set of 10
  • It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
