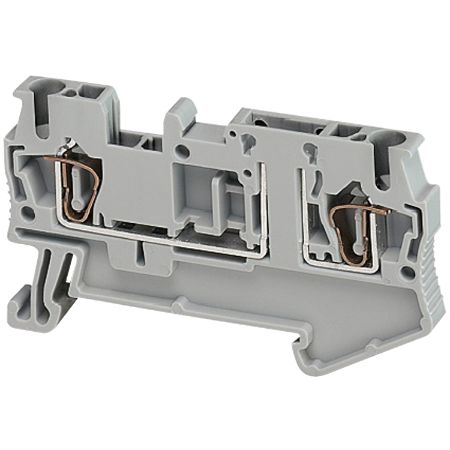

Picture of Terminal block, spring type, Linergy TR, Removable carrier disconnect, 2 points, 4mm², grey
SKU:

NSYTRR22TB

Terminal block, spring type, Linergy TR, Removable carrier disconnect, 2 points, 4mm², grey

Old price: $5.67 INC GST
$5.10 INC GST
Available for Shipping : 24-Jul-2025
Terminal block, spring type, Linergy TR, Removable carrier disconnect, 2 points, 4mm², grey
  • It belongs to linergy removable carrier disconnect terminal block with 2.5 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 spring type terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Associated connection component cylindrical fuse, diode, blade
Quantity per set set of 50
Terminal block level 1
Length 60.5 mm
Device short name TRR
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 2.5 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type removable carrier disconnect
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 10 mm
Tool type connection: flat screwdriver, disconnection: flat screwdriver
Number of measurement input 2
Connection position top
Connections - terminals 1 x spring terminal: downstream, 1 x spring terminal: upstream
Height 36.5 mm
Fuse size 6 x 32 mm, 5 x 20 mm
[In] rated current 16-16 A cURus, 16-16 A CSA, 20-20 A conforming to EN/IEC 60947-7-1
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 7.7 g
Number of terminals 2
Product compatibility Spacial enclosures
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 300 V CSA, 300 V cURus, 400 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 5.2 mm
Cable cross section 0.8-4 mm², solid, 0.08-2.5 mm², flexible without cable end
Environment
Product certifications CSA, EAC, cURus
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 7.000 cm
Package 1 Length 5.400 cm
Package 1 Weight 7.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 4.500 cm
Package 2 Width 7.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 380.000 g
Unit Type of Package 3 3
Number of Units in Package 3 650
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.344 kg
