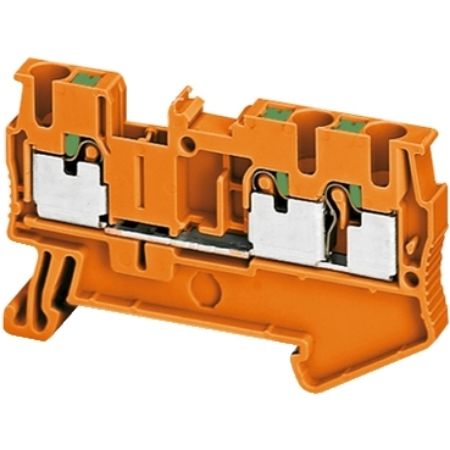

Picture of Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², orange, set of 50
SKU:

NSYTRP23AR

Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², orange, set of 50

Old price: $3.16 INC GST
$2.84 INC GST
Available for Shipping : 24-Jul-2025
Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², orange, set of 50
  • It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRP
Colour orange
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Accessory / separate part category connection accessory
Range of product Linergy
Nominal cross section 2.5 mm²
Terminal block level 1
Length 60.5 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Product compatibility Spacial enclosures
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 10 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type disconnection: flat screwdriver, connection: without tool
Number of measurement input 2
Connection position top
Connections - terminals 2 x push-in: downstream, 1 x push-in: upstream
Height 36.5 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V cURus, 600 V CSA, 800 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current 20-20 A cURus, 20-20 A CSA, 24-24 A conforming to EN/IEC 60947-7-1
Width 5.2 mm
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 8.8 g
Cable cross section 0.8-2.5 mm², flexible with cable end, 0.2-2.5 mm², solid without cable end, 0.14-4 mm², solid with cable end, 0.14-2.5 mm², flexible without cable end
Number of terminals 3
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications LR, cURus, GL, CSA, VDE, EAC, ATEX, IEC-Ex
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 7.000 cm
Package 1 Length 6.000 cm
Package 1 Weight 8.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 4.500 cm
Package 2 Width 7.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 442.000 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.775 kg
