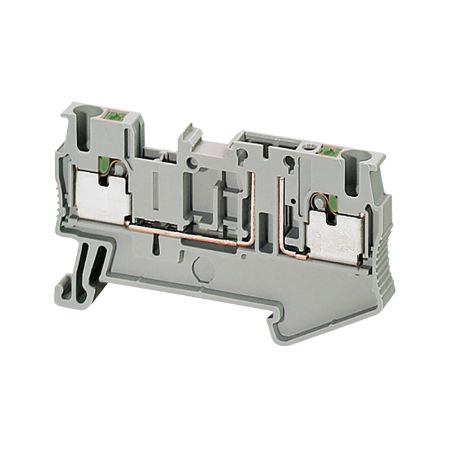

Picture of Terminal block Linergy TR, push-in type, basic disconnect terminal, 2 points, 2.5mm², grey, set of 50
SKU:

NSYTRP22TB

Terminal block Linergy TR, push-in type, basic disconnect terminal, 2 points, 2.5mm², grey, set of 50

Old price: $4.84 INC GST
$4.36 INC GST
Available for Shipping : 24-Jul-2025
Terminal block Linergy TR, push-in type, basic disconnect terminal, 2 points, 2.5mm², grey, set of 50
  • It belongs to linergy basic disconnect terminal block with 2.5 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRP
Associated connection component blade, cylindrical fuse, diode
Colour grey
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 2.5 mm²
Terminal block level 1
Length 62 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type removable carrier disconnect
Complementary
Product compatibility Spacial enclosures
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 10 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type connection: without tool, disconnection: flat screwdriver
Number of measurement input 2
Connection position top
Connections - terminals 1 x push-in: downstream, 1 x push-in: upstream
Height 36.5 mm
Fuse size 6 x 32 mm, 5 x 20 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 300 V CSA, 300 V cURus, 400 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current 20-20 A CSA, 20-20 A cURus, 20-20 A conforming to EN/IEC 60947-7-1
Width 5.2 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 8 g
Cable cross section 0.14-4 mm², solid, 0.14-2.5 mm², flexible without cable end
Number of terminals 2
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications GL, CSA, EAC, VDE, LR, cURus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 4.000 cm
Package 1 Length 6.500 cm
Package 1 Weight 7.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 4.500 cm
Package 2 Width 7.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 387.000 g
Unit Type of Package 3 3
Number of Units in Package 3 1250
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.056 kg
Unit Type of Package 4 4
Number of Units in Package 4 10000
Package 4 Height 75.000 cm
Package 4 Width 80.000 cm
Package 4 Length 60.000 cm
Package 4 Weight 88.448 kg
