Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
SKU:

NSYTBS775

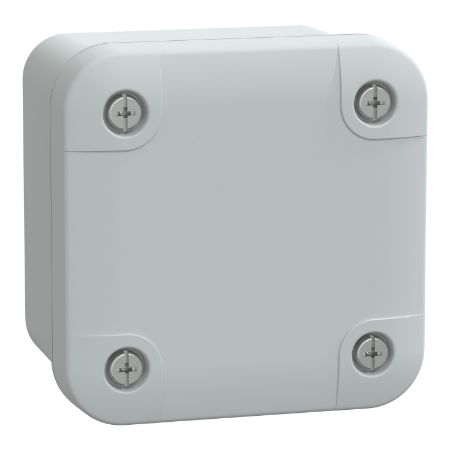

Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10

Old price: $7.37 INC GST
$6.63 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H65W65D45 Ext.H74W74D56 Opaque cover H10
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
Thalassa TBS industrial ABS box with opaque cover H10. Int is 65 x 65 x 45 mm. Ext is 74 x 74 x 56 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 54 mm
Width 74 mm
Quantity per set set of 5
Enclosure mounting wall mounted
Cover fixing metal screws
Body type one piece moulded
Range Thalassa
Type of front cover low plain cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBS
Internal depth 47 mm
Internal height 65 mm
Internal width 65 mm
Product or component type industrial box
Height 74 mm
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Material ABS (acrylonitrile butadiene-styrene)
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Net weight 0.068 kg
Standards IEC 62208
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.700 cm
Package 1 Width 1.600 cm
Package 1 Length 5.800 cm
Package 1 Weight 74.000 g
Unit Type of Package 2 2
Number of Units in Package 2 185
Package 2 Height 40.000 cm
Package 2 Width 40.500 cm
Package 2 Length 60.500 cm
Package 2 Weight 15.190 kg
Unit Type of Package 3 3
Number of Units in Package 3 2220
Package 3 Height 135.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 195.000 kg
