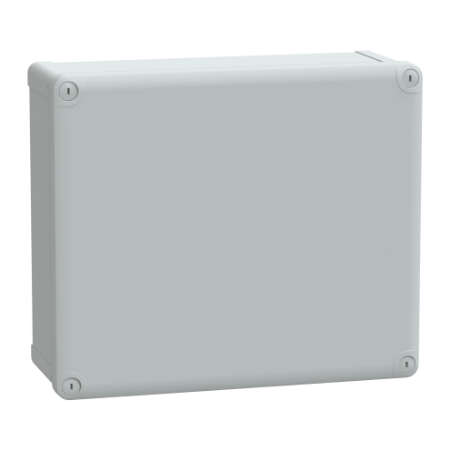

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20
SKU:

NSYTBS342912

Thalassa, ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20

Old price: $98.34 INC GST
$88.51 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
The Thalassa TBS industrial ABS box with opaque cover H20 is designed for multi-purpose application. The external dimensions are (H) 341 mm x (W) 291 mm x (D) 128 mm and the internal dimensions are (H) 325 mm x (W) 275 mm x (D) 120 mm. The cover is fixed by removable plastic captive screw that are flat outside the sealed area. The box is made of ABS (acrylonitrile butadiene-styrene) and offers IP66 protection against dust and water, IK07 hard impact resistance, 650°C glow wire resistance and class II insulation. The installation temperature is -15 °C to 40 °C and the operating temperature is -25 °C to 60 °C. This product is IEC 62208 certified and is qualified as green premium, with minimal use of hazardous substances.

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 120 mm
Internal height 325 mm
Height 341 mm
Removable parts cover by captive screws
Depth 128 mm
Width 291 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBS
Internal width 275 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Material ABS (acrylonitrile butadiene-styrene)
Net weight 1.16 kg
Standards IEC 62208
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 30 cm
Package 1 Length 35.5 cm
Package 1 Weight 1.365 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 40 cm
Package 2 Width 40.5 cm
Package 2 Length 60 cm
Package 2 Weight 6.37 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 135 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 87 kg
