Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
SKU:

NSYTBS292416H

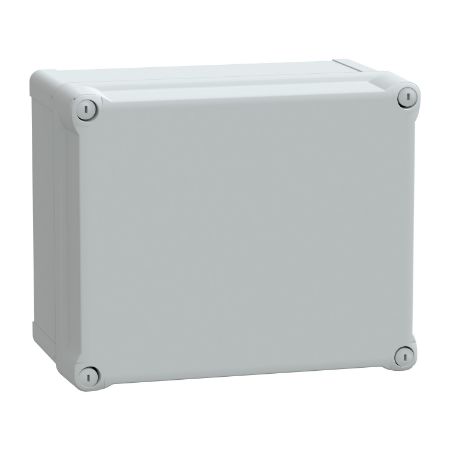

Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60

Old price: $80.19 INC GST
$72.17 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D160 Ext.H291W241D168 Opaque cover H60
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 291 mm, 241 mm, and 168 mm, respectively The internal dimensions of the box are 275 mm x 225 mm x 160 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a high plain cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262) It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance With a net weight of 1,24 kg, this TBS is the perfect solution for your multi-purpose needs

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover high plain cover
Lock type captive screw flat outside sealed area
Internal depth 160 mm
Internal height 275 mm
Height 291 mm
Removable parts cover by captive screws
Depth 168 mm
Width 241 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBS
Internal width 225 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Material ABS (acrylonitrile butadiene-styrene)
Net weight 1.24 kg
Standards IEC 62208
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.000 cm
Package 1 Width 25.000 cm
Package 1 Length 30.500 cm
Package 1 Weight 1.207 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 40.000 cm
Package 2 Width 40.500 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.694 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 136.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 77.000 kg
