Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
SKU:

NSYTBS292412HT

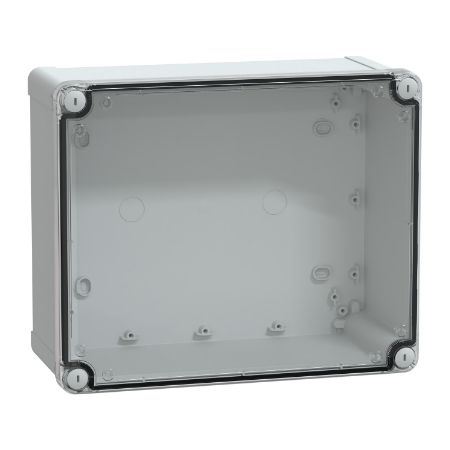

Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60

Old price: $86.35 INC GST
$77.72 INC GST
Available for Shipping : 12-Aug-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 291 mm, 241 mm, and 128 mm, respectively The internal dimensions of the box are 275 mm x 225 mm x 120 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) and transparent color It has a high transparent cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 650°C in accordance with IEC 60695-2-11 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK07 rating (IEC 62262) It can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance The net weight of the box is 1,16 kg

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 128 mm
Width 241 mm
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover high transparent cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBS
Internal depth 120 mm
Internal height 275 mm
Internal width 225 mm
Product or component type industrial box
Height 291 mm
Removable parts cover by captive screws
Complementary
Colour transparent, grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Material ABS (acrylonitrile butadiene-styrene)
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Net weight 1.16 kg
Standards IEC 62208
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 25.500 cm
Package 1 Length 31.000 cm
Package 1 Weight 1.160 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 40.500 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.200 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 135.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 100.000 kg
