Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
SKU:

NSYTBS292412H

Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60

Old price: $72.93 INC GST
$65.64 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H60
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet

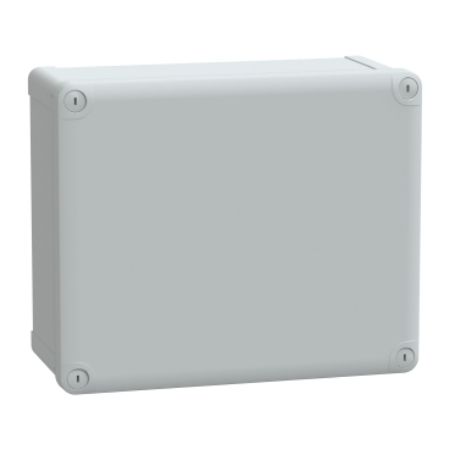

Thalassa TBS industrial ABS box with opaque cover H60. Int is 275 x 225 x 120 mm. Ext is 291 x 241 x 128 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover high plain cover
Lock type captive screw flat outside sealed area
Internal depth 120 mm
Internal height 275 mm
Height 291 mm
Removable parts cover by captive screws
Depth 128 mm
Width 241 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBS
Internal width 225 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Material ABS (acrylonitrile butadiene-styrene)
Net weight 1.1 kg
Standards IEC 62208
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 25.000 cm
Package 1 Length 31.000 cm
Package 1 Weight 1.044 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 40.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.148 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 136.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 94.500 kg

Related products

Picture of Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

NSYAEFTB
$11.98 INC GST $13.31 INC GST
View Detail
Picture of Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

NSYCAG12LPH2
$10.99 INC GST $12.21 INC GST
View Detail
Picture of Hinges, for cover-depth 40 mm. In thermoplastic PC with screws.

Hinges, for cover-depth 40 mm. In thermoplastic PC with screws.

NSYAEDH40TB
$22.87 INC GST $25.41 INC GST
View Detail

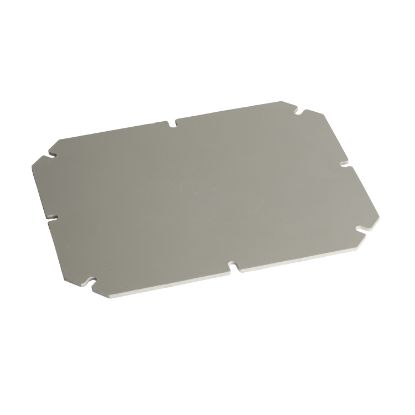

Picture of Mounting plate in galvanized steel, thickness 1.5 mm For boxes of H275W225 mm
