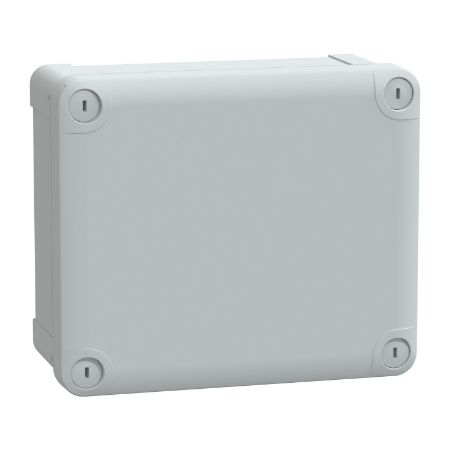

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
SKU:

NSYTBS19168

Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20

Old price: $26.73 INC GST
$24.06 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque cover H20
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
ABS industrial box for Thalassa TBS. Multi purpose. 192 x 164 x 87 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 80 mm
Internal height 175 mm
Height 192 mm
Removable parts cover by captive screws
Depth 87 mm
Width 164 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBS
Internal width 150 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Material ABS (acrylonitrile butadiene-styrene)
Net weight 0.45 kg
Standards IEC 62208
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 17.000 cm
Package 1 Length 20.500 cm
Package 1 Weight 447.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 40.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.760 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 136.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 126.000 kg
