SKU:

NSYTBS1176

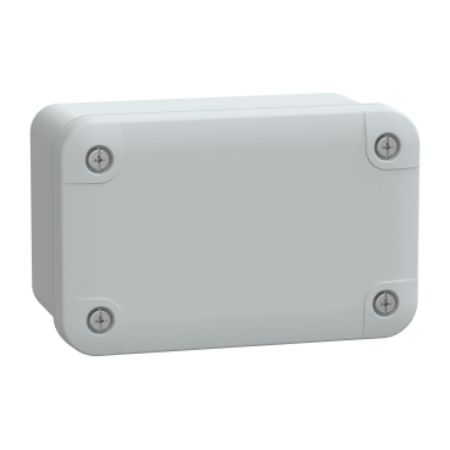

Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10

Old price: $9.02 INC GST
$8.12 INC GST
Available for Shipping : 23-Jul-2025
Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Product Page Link
Product Data Sheet
Thalassa TBS industrial ABS box with opaque cover H10. Int is 105 x 65 x 55 mm. Ext is 116 x 74 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Quantity per set set of 5
Enclosure mounting wall mounted
Cover fixing metal screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 55 mm
Internal height 105 mm
Height 116 mm
Removable parts cover by captive screws
Depth 62 mm
Width 74 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBS
Internal width 65 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Material ABS (acrylonitrile butadiene-styrene)
Net weight 0.108 kg
Standards IEC 62208
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 7.400 cm
Package 1 Length 11.600 cm
Package 1 Weight 107.000 g
Unit Type of Package 2 2
Number of Units in Package 2 105
Package 2 Height 40.000 cm
Package 2 Width 40.500 cm
Package 2 Length 60.000 cm
Package 2 Weight 11.970 kg
Unit Type of Package 3 3
Number of Units in Package 3 1260
Package 3 Height 135.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 152.000 kg
