SKU:

NSYTBP775

Thalassa, PC box IP66 IK08 RAL7035 Int.H65W65D45 Ext.H74W74D56 opaque PC cover H10

Old price: $10.89 INC GST
$9.80 INC GST
Available for Shipping : 24-Jul-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H65W65D45 Ext.H74W74D56 opaque PC cover H10
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Instruction sheet
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet

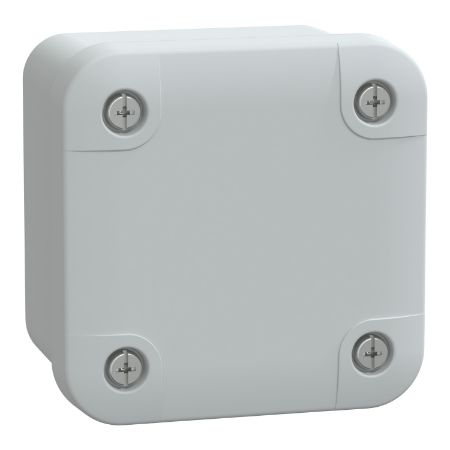

Thalassa TBP industrial PC box with opaque PC cover H10. Int is 65 x 65 x 45 mm. Ext is 74 x 74 x 56 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 54 mm
Width 74 mm
Quantity per set set of 5
Enclosure mounting wall mounted
Cover fixing metal screws
Body type one piece moulded
Range Thalassa
Type of front cover low plain cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 47 mm
Internal height 65 mm
Internal width 65 mm
Product or component type industrial box
Height 74 mm
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 0.076 kg
Standards UL 508 A, IEC 62208
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 7.400 cm
Package 1 Length 7.400 cm
Package 1 Weight 76.000 g
Unit Type of Package 2 2
Number of Units in Package 2 185
Package 2 Height 40.000 cm
Package 2 Width 41.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 17.040 kg
Unit Type of Package 3 3
Number of Units in Package 3 4625
Package 3 Height 218.000 cm
Package 3 Width 100.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 441.000 kg
